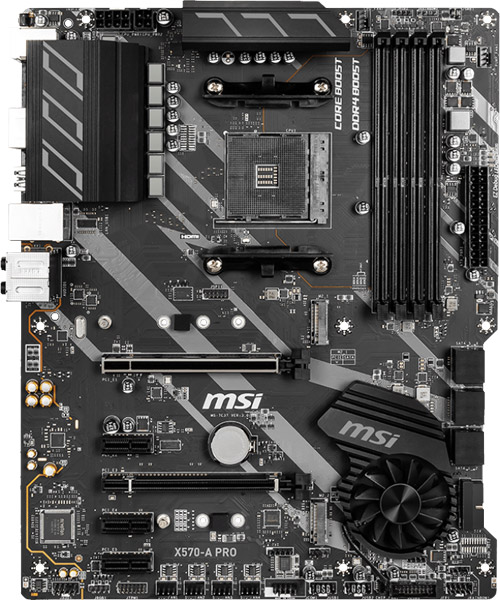

ΜΗΤΡΙΚΗ MSI X570-A PRO RETAIL

Κατηγορία: ΜΗΤΡΙΚΗ ΚΑΡΤΑ •
MSI στην κατηγορία ΜΗΤΡΙΚΗ ΚΑΡΤΑ

Εμπνευσμένη από τον αρχιτεκτονικό σχεδιασμό, με Lightning Gen 4 PCIe και M.2, Frozr Heasink, Core Boost, DDR4 Boost, Audio Boost 4, USB 3.2 Gen2.

• Τύπος: ATX Form Factor (30.4 cm x 24.3 cm).
• Επεξεργαστές: Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4.
• Chipset: AMD X570.
• Μνήμες: 4 DDR4 memory slots, support up to 128GB (depending on the processor), 3rd Gen AMD Ryzen Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE, 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE.
• Υποστήριξη δίσκων: 6 x SATA 6Gb/s ports, 2 x M.2 slot (Key M).
• Θύρες επέκτασης: 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1), 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode, 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode, 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode), 3 x PCIe 3.0 x1 slots.
• Εσωτερικές συνδέσεις: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector, 6 x SATA 6Gb/s connectors, 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports), 1 x 4-pin CPU fan connector, 1 x 4-pin water-pump connector, 4 x 4-pin system fan connectors, 1 x Front panel audio connector, 2 x System panel connectors, 1 x TPM module connector, 1 x Serial port connector, 1 x Clear CMOS jumper, 1 x Chassis Intrusion connector, 2 x 4-pin RGB LED connectors, 2 x 3-pin RAINBOW LED connectors, 4 x EZ Debug LEDs.
• Εξωτερικές συνδέσεις: Keyboard / Mouse, 2xUSB 3.2 Gen1 Type-A, LAN Port, HD Audio Connectors, Flash BIOS Button, 2xUSB 2.0 Ports, HDMI Port, 2xUSB 3.2 Gen2 Ports (Type-A + C), 2xUSB 3.2 Gen1 Type-A Ports, Optical S/PDIF out.
• Γραφικά: 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz.
• Ενσωματωμένη κάρτα ήχου: Realtek ALC1220 Codec.
• Ενσωματωμένη κάρτα δικτύου: 1 x Realtek 8111H Gigabit LAN Controller.
• Συμβατό λειτουργικό σύστημα: Microsoft Windows 10 64-bit/32-bit, Microsoft Windows 8.1 64-bit/32-bit, Microsoft Windows 8 64-bit/32-bit, Microsoft Windows 7 64-bit/32-bit.
• Εγγύηση: 2 χρόνια. DOA 7 ημερών
