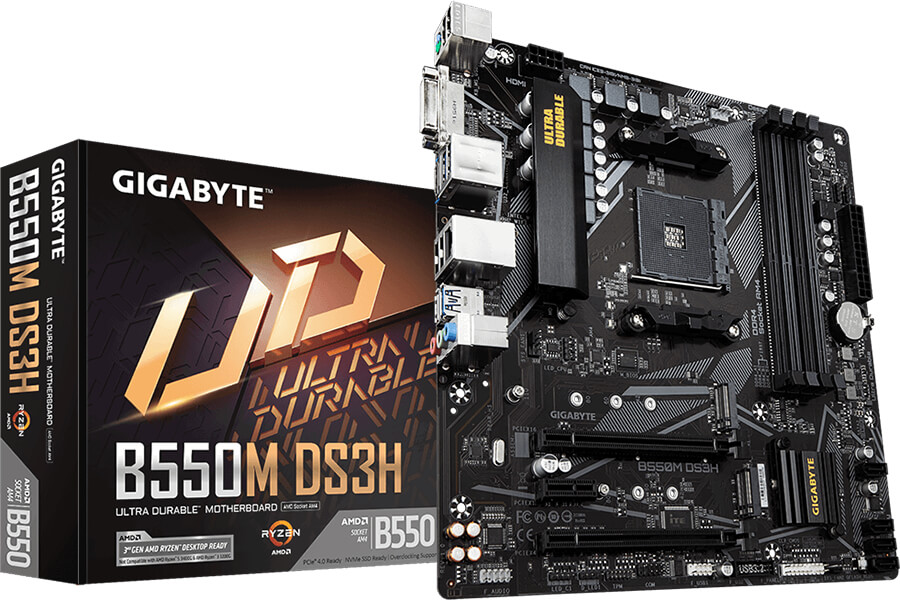

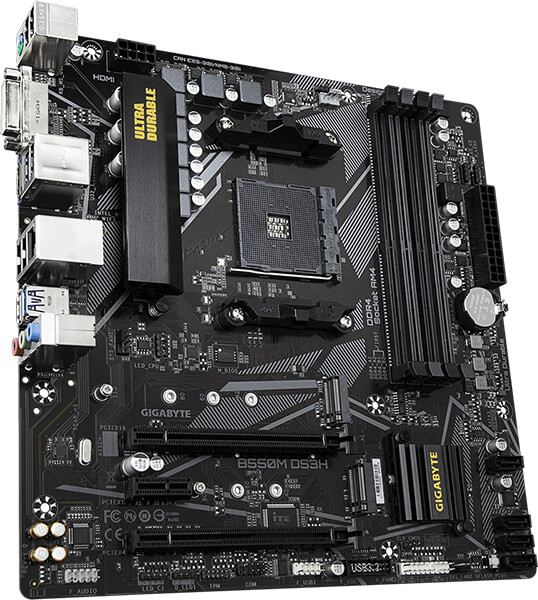

ΜΗΤΡΙΚΗ GIGABYTE B550M DS3H RETAIL

Κατηγορία: ΜΗΤΡΙΚΗ ΚΑΡΤΑ •
GIGABYTE στην κατηγορία ΜΗΤΡΙΚΗ ΚΑΡΤΑ

AMD B550 Ultra Durable Motherboard με Pure Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, GIGABYTE 8118 Gaming LAN, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus.

• Τύπος: Micro ATX Form Factor (24.4cm x 24.4cm).
• Επεξεργαστές: AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ New Generation AMD Ryzen with Radeon Graphics processors.
• Chipset: AMD B550.
• Μνήμες: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, 3rd Gen AMD Ryzen Processors: Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules, New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules.
• Υποστήριξη δίσκων: 1? x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110, 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs, 4 x SATA 6Gb/s connectors, integrated in the Chipset.
• Θύρες επέκτασης: 1? x PCI Express x16 slot (PCIEX16), integrated in the CPU, 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset, 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset.
• Εσωτερικές συνδέσεις: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 1 x CPU cooler LED strip/RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x serial port header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button.
• Εξωτερικές συνδέσεις: 1 x PS/2 keyboard/mouse port, 1 x DVI-D port, 1 x HDMI port, 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks.
• Γραφικά: Integrated in the New Generation AMD Ryzen with Radeon Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz.
• Ενσωματωμένη κάρτα ήχου: Realtek ALC887 codec.
• Ενσωματωμένη κάρτα δικτύου: Realtek GbE LAN chip (1000 Mbit/100 Mbit).
• Συμβατό λειτουργικό σύστημα: Microsoft Windows 10 64-bit.
• Εγγύηση: 3 χρόνια. DOA 7 ημερών
