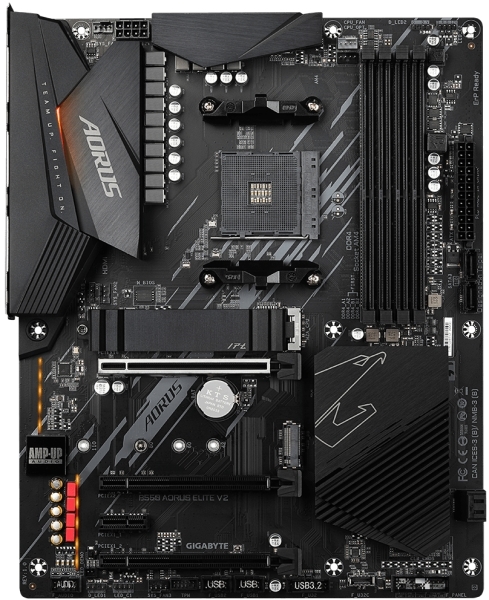

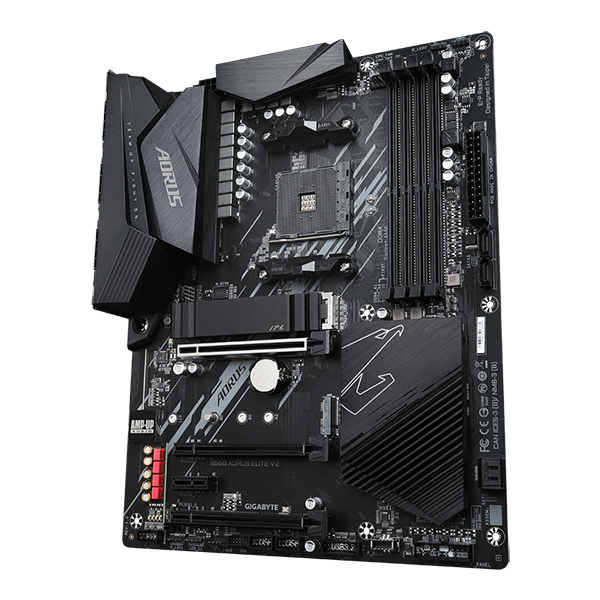

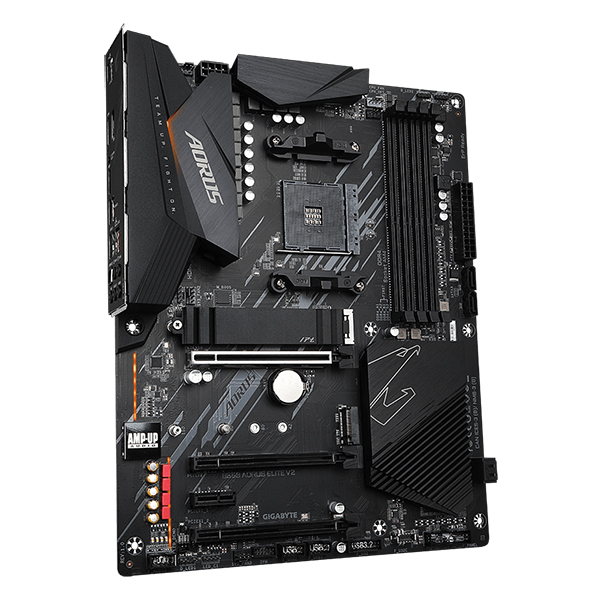

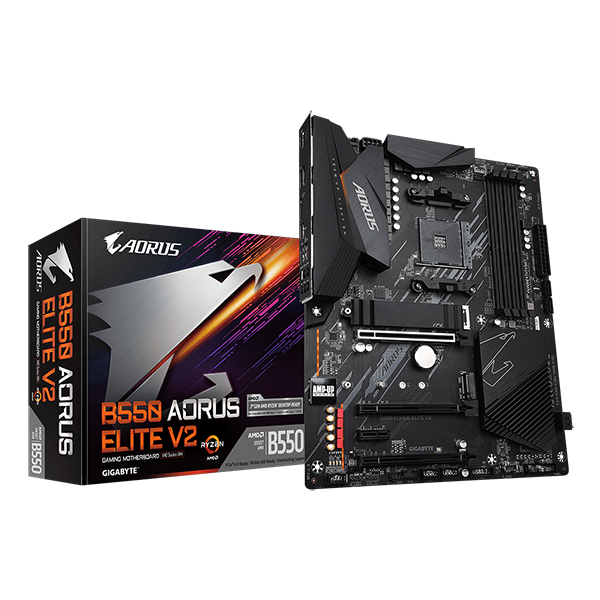

ΜΗΤΡΙΚΗ GIGABYTE B550 AORUS ELITE V2

Κατηγορία: ΜΗΤΡΙΚΗ ΚΑΡΤΑ •
GIGABYTE στην κατηγορία ΜΗΤΡΙΚΗ ΚΑΡΤΑ

AMD B550 AORUS Motherboard with True 12+2 Phases Digital VRM, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2 with One Thermal Guard, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus.

• Τύπος: ATX Form Factor (30.5cm x 24.4cm).
• Επεξεργαστές: AMD Socket AM4, support for: AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors.
• Chipset: AMD B550.
• Μνήμες: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, AMD Ryzen 5000 series processors: Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules, 3rd Gen AMD Ryzen Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules, 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules, Dual channel memory architecture.
• Υποστήριξη δίσκων: 1 x M.2 connector (M2A_CPU), 1 x M.2 connector (M2B_SB), 4 x SATA 6Gb/s connectors.
• Θύρες επέκτασης: 1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x16 slot (PCIEX2), 1 x PCI Express x16 slot (PCIEX1_2), 1 x PCI Express x1 slot (PCIEX1_1).
• Εσωτερικές συνδέσεις: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers, 1 x CPU cooler LED strip/RGB LED strip header, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C™ port, with USB 3.2 Gen 1 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x Clear CMOS jumper.

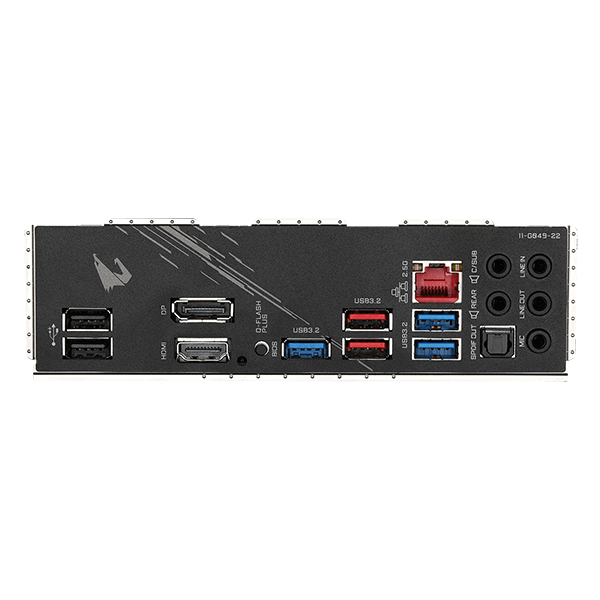

• Εξωτερικές συνδέσεις: 1 x DisplayPort, 1 x HDMI port, 2 x USB 3.2 Gen 2 Type-A ports (red), 3 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x Q-Flash Plus button, 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 5 x audio jacks.
• Γραφικά: Integrated Graphics Processor: 1 x HDMI, 1 x DisplayPort.
• Ενσωματωμένη κάρτα ήχου: Realtek ALC1200 CODEC.
• Ενσωματωμένη κάρτα δικτύου: Realtek GbE LAN chip (1000 Mbit/100 Mbit).
• Συμβατό λειτουργικό σύστημα: Microsoft Windows 10 64-bit.
• Εγγύηση: 3 χρόνια. DOA 7 ημερών
