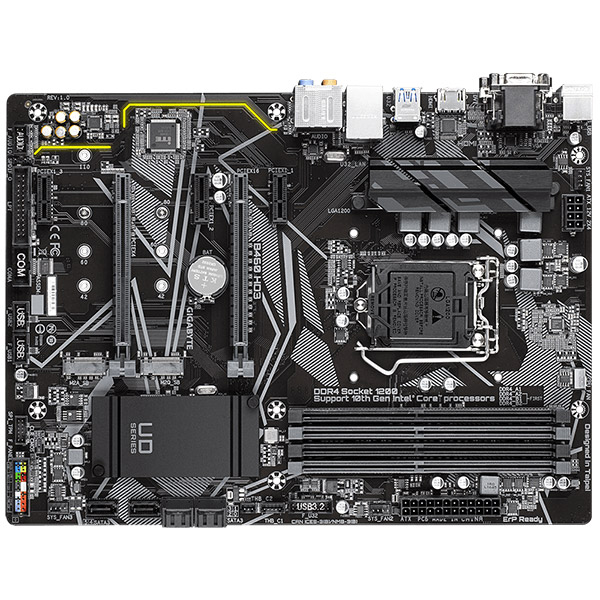

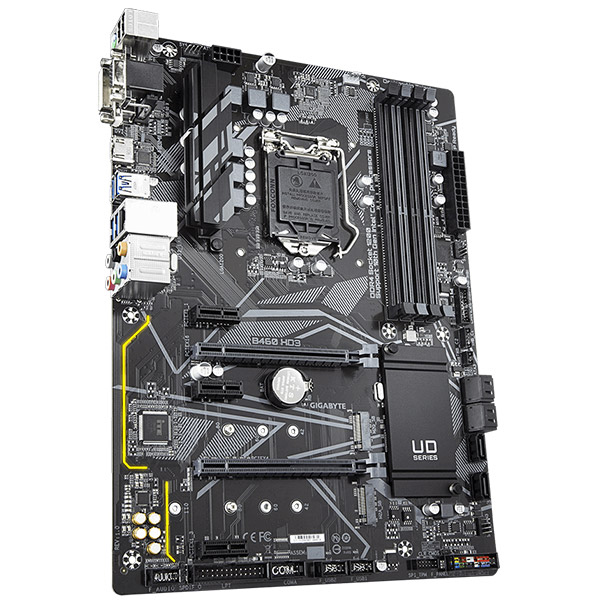

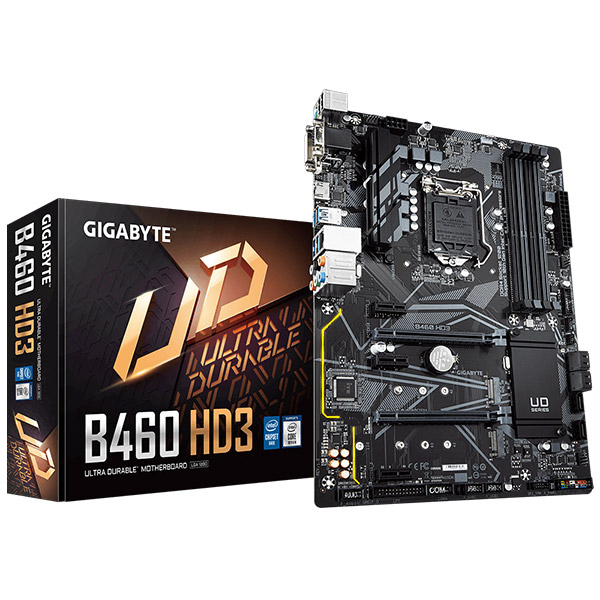

ΜΗΤΡΙΚΗ GIGABYTE B460 HD3 RETAIL

Κατηγορία: ΜΗΤΡΙΚΗ ΚΑΡΤΑ •
GIGABYTE στην κατηγορία ΜΗΤΡΙΚΗ ΚΑΡΤΑ

Intel B460 Ultra Durable Motherboard με Dual NVMe PCIe Gen3 M.2 Slots, GIGABYTE Gaming GbE LAN with Bandwidth Management, ALC1200 High Quality Audio Design , Smart Fan 5, DualBIOS.

• Τύπος: ATX Form Factor (30.5cm x 22.5cm).
• Επεξεργαστές: Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package.
• Chipset: Intel B460 Express.
• Μνήμες: Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules, Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules, 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory.
• Υποστήριξη δίσκων: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD) (M2Q_SB), 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD) (M2A_SB), 6 x SATA 6Gb/s connectors.
• Θύρες επέκτασης: 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 3 x PCI Express x1 slots.
• Εσωτερικές συνδέσεις: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 3 x system fan headers, 2 x M.2 Socket 3 connectors, 6 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x S/PDIF Out header, 2 x Thunderbolt™ add-in card connectors, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x serial port header, 1 x parallel port header, 1 x Clear CMOS jumper.

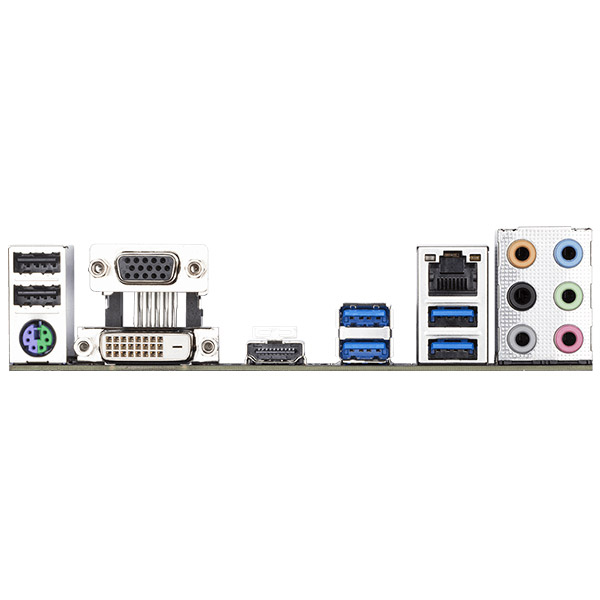

• Εξωτερικές συνδέσεις: 1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x DVI-D port, 1 x HDMI port, 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 6 x audio jacks.
• Γραφικά: Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz.
• Ενσωματωμένη κάρτα ήχου: Realtek ALC1200 codec.
• Ενσωματωμένη κάρτα δικτύου: Realtek GbE LAN chip (100/1000 Mbit).
• Συμβατό λειτουργικό σύστημα: Microsoft Windows 10 64-bit.
• Εγγύηση: 3 χρόνια. DOA 7 ημερών
