ΜΗΤΡΙΚΗ GIGABYTE B450 AORUS ELITE V2 RETAIL

Κατηγορία: ΜΗΤΡΙΚΗ ΚΑΡΤΑ •
GIGABYTE στην κατηγορία ΜΗΤΡΙΚΗ ΚΑΡΤΑ

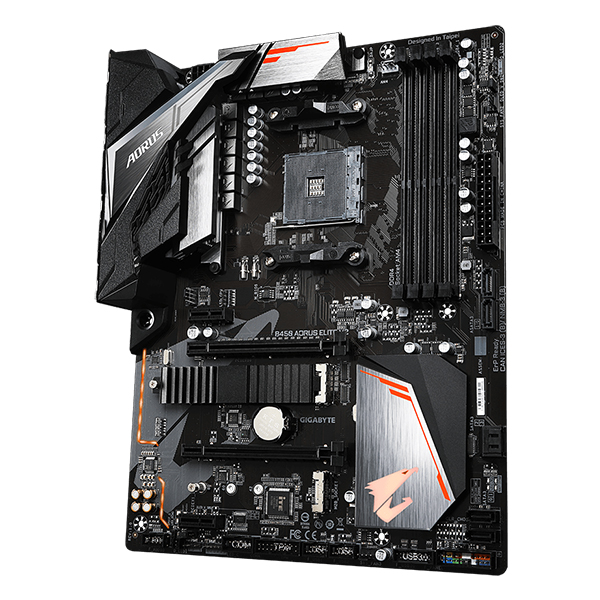

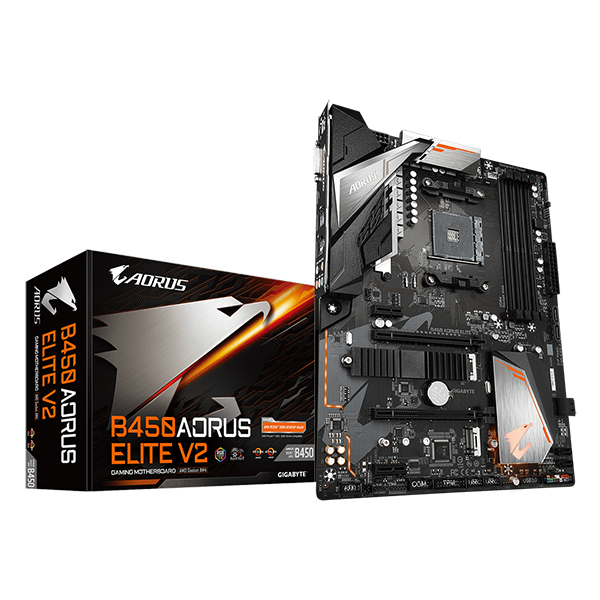

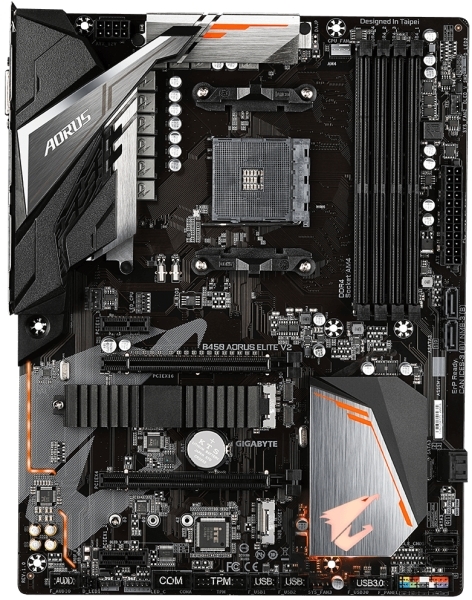

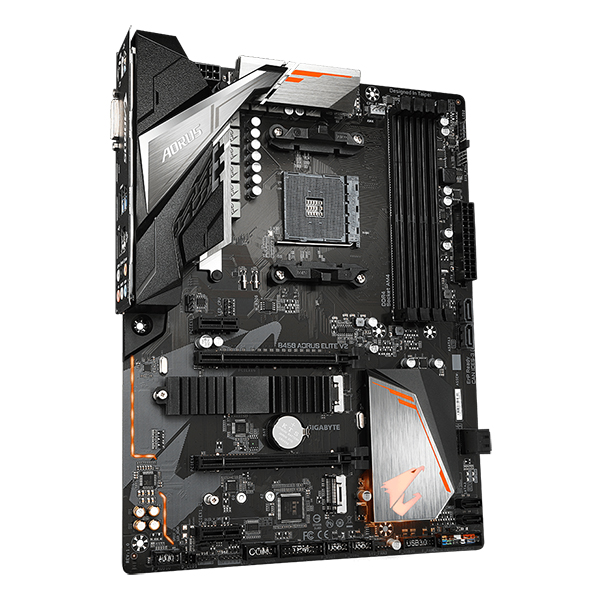

AMD B450 AORUS Motherboard with 8+2 Phases Digital Twin Power Design, Dual M.2 with One Thermal Guard, GIGABYTE Gaming LAN with Bandwidth Management, RGB FUSION 2.0, CEC 2019 Ready.

• Τύπος: ATX Form Factor (30.5cm x 23.5cm).
• Επεξεργαστές: Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors.
• Chipset: AMD B450.
• Μνήμες: 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory, Dual channel memory architecture, Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules.
• Υποστήριξη δίσκων: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET), 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET), 6 x SATA 6Gb/s connectors.
• Θύρες επέκτασης: 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 2 x PCI Express x1 slots.
• Εσωτερικές συνδέσεις: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 2 x M.2 Socket 3 connectors, 6 x SATA 6Gb/s connectors, 1 x CPU fan header, 3 x system fan headers, 1 x CPU cooler LED strip/RGB LED strip extension cable header, 1 x RGB (RGBW) LED strip header, 2 x digital LED strip headers, 2 x digital LED strip power select jumpers, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB 3.1 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only), 1 x serial port header, 1 x Clear CMOS jumper.

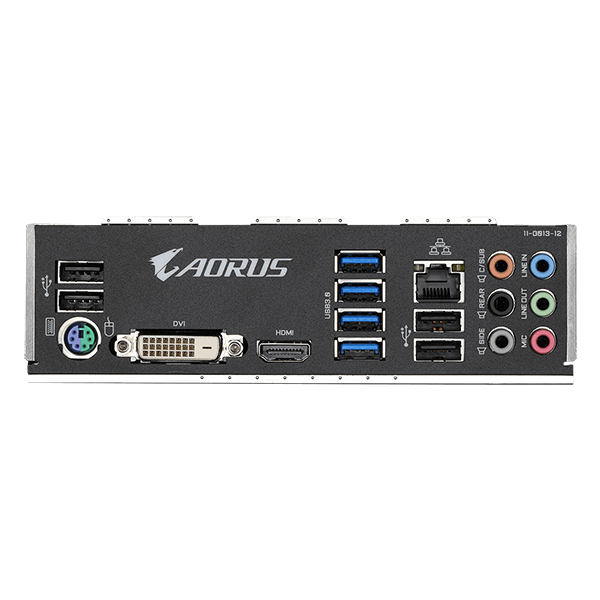

• Εξωτερικές συνδέσεις: 1 x PS/2 keyboard/mouse port, 1 x DVI-D port, 1 x HDMI port, 4 x USB 3.1 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 6 x audio jacks.
• Γραφικά: Integrated Graphics processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz.
• Ενσωματωμένη κάρτα ήχου: Realtek ALC892 codec.
• Ενσωματωμένη κάρτα δικτύου: Realtek GbE LAN chip (10/100/1000 Mbit).
• λειτουργικό σύστημα: Microsoft Windows 10 64-bit.
• Εγγύηση: 3 χρόνια. DOA 7 ημερών
