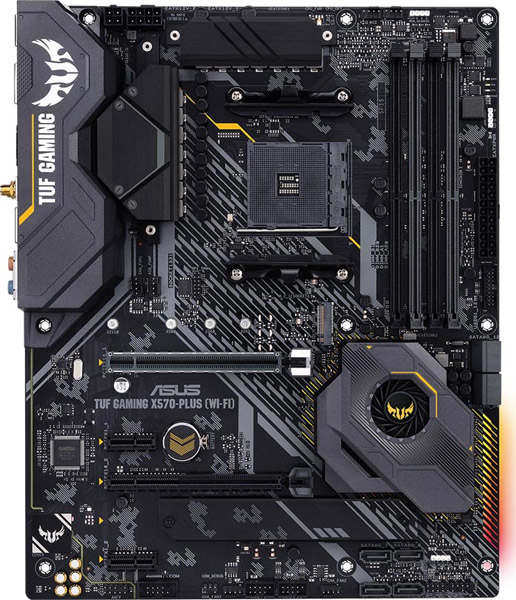

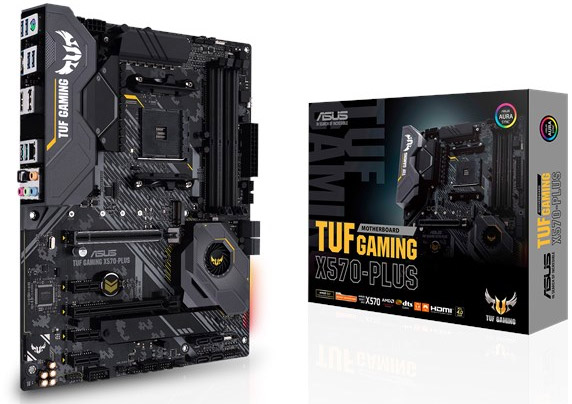

ΜΗΤΡΙΚΗ ASUS TUF GAMING X570-PLUS (WI-FI) RETAIL

Κατηγορία: ΜΗΤΡΙΚΗ ΚΑΡΤΑ •
ASUS στην κατηγορία ΜΗΤΡΙΚΗ ΚΑΡΤΑ

AMD AM4 X570 ATX gaming motherboard με PCIe 4.0, dual M.2, Wi-Fi, 14 Dr. MOS power stages, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2και φωτισμό Aura Sync RGB.

• Τύπος: ATX Form Factor ( 30.5 cm x 24.4 cm ).
• Επεξεργαστές: AMD AM4 Socket AMD Ryzen 2nd Generation/3rd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors.
• Chipset: AMD X570.
• Μνήμες: 3rd Gen AMD Ryzen Processors: 4 x DIMM, Max. 128GB, DDR4 MHz Memory / 2nd Gen AMD Ryzen Processors: 4 x DIMM, Max. 128GB, DDR4 MHz Memory / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: 4 x DIMM, Max. 128GB, DDR4 MHz Memory.
• Υποστήριξη δίσκων: 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support / 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support / AMD X570 chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support, 8 x SATA 6Gb/s port(s).
• Θύρες επέκτασης: 3rd Gen AMD Ryzen Processors: 1 x PCIe 4.0 x16 (x16 mode) / 2nd Gen AMD Ryzen Processors: 1 x PCIe 3.0 x16 (x16 mode) / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: 1 x PCIe 3.0/2.0 x16 (x8 mode) / AMD X570 chipset: 1 x PCIe 4.0 x16 (max at x4 mode), 2 x PCIe 4.0 x1.
• Εσωτερικές συνδέσεις: 2 x Aura RGB Strip Header(s), 1 x Addressable Gen 2 header(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode), 1 x SPI TPM header, 8 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) , 1 x CPU OPT Fan connector(s) , 3 x Chassis Fan connector(s) , 1 x AIO_PUMP connector , 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x 4-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s) , 1 x Clear CMOS jumper(s), 1 x COM port header, 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports.
• Εξωτερικές συνδέσεις: 1 x PS/2 keyboard/mouse combo port(s), 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 1 x Optical S/PDIF out, 5 x Audio jack(s), 4 x USB 3.2 Gen 1 (up to 5Gbps) ports , 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C), ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0).
• Γραφικά: Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors , Multi-VGA output support : HDMI/DisplayPort ports, Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz, Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz.
• Ενσωματωμένη κάρτα ήχου: Realtek ALC S1200A 8-Channel High Definition Audio CODEC.
• Ενσωματωμένη κάρτα δικτύου: Realtek L8200A.
• Ασύρματο δίκτυο & Bluetooth: Intel Wireless-AC 9260, Wi-Fi 802.11 a/b/g/n/ac / Bluetooth 5.0.
• Συμβατό λειτουργικό σύστημα: Microsoft Windows 10 64-bit.
• Εγγύηση: 3 χρόνια. DOA 7 ημερών
