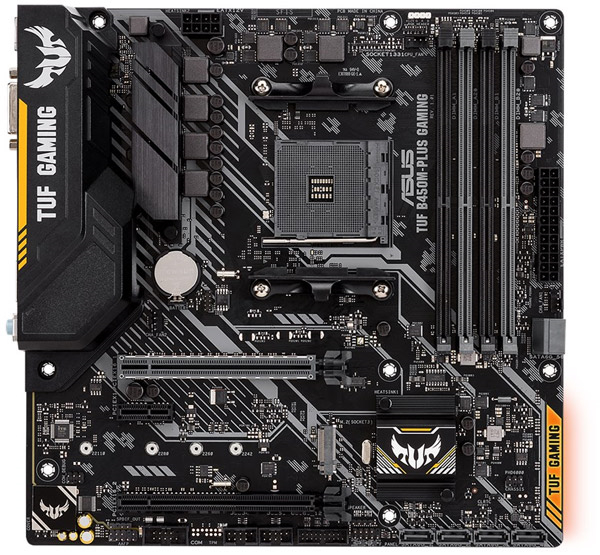

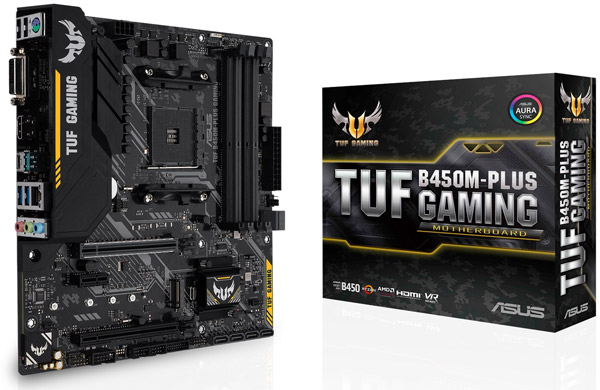

ΜΗΤΡΙΚΗ ASUS TUF B450M-PLUS GAMING

Κατηγορία: ΜΗΤΡΙΚΗ ΚΑΡΤΑ •
ASUS στην κατηγορία ΜΗΤΡΙΚΗ ΚΑΡΤΑ

AMD B450 mATX gaming motherboard με Aura Sync RGB LED lighting, DDR4 4400MHz υποστήριξη, 32Gbps M.2, HDMI 2.0b, Type C και native USB 3.1 Gen 2.

• Τύπος: mATX Form Factor, 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ).
• Επεξεργαστές: AMD AM4 Socket AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation Processors.
• Chipset: AMD B450.
• Μνήμες: AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors, 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory , Dual Channel Memory Architecture, ECC Memory (ECC mode) support varies by CPU.
• Υποστήριξη δίσκων: 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), AMD Athlon with Radeon Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode), 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors : 2 x SATA 6Gb/s port(s), AMD B450 chipset : 4 x SATA 6Gb/s port(s).
• Θύρες επέκτασης: AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors: 1 x PCIe 3.0/2.0 x16 (x16 mode) / AMD Ryzen with Radeon Vega Graphics Processor: 1 x PCIe 3.0/2.0 x16 (x8 mode) / AMD B450 chipset: 1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1.
• Εσωτερικές συνδέσεις: 1 x Aura RGB Strip Header, 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), 6 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 2 x Chassis Fan connector(s) (2 x 4 -pin), 1 x S/PDIF out header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s) , 1 x Clear CMOS jumper(s), 1 x COM port header.
• Εξωτερικές συνδέσεις: 1 x PS/2 keyboard/mouse combo port(s), 1 x DVI-D, 1 x HDMI, 1 x LAN (RJ45) port(s), 1 x USB 3.1 Gen 2 Type-A, 1 x USB 3.1 Gen 1 (blue) USB Type-C, 2 x USB 2.0, 2 x USB 3.1 Gen 1 (blue), 3 x Audio jack(s).
• Γραφικά: Integrated in the AMD Ryzen with Radeon Vega Graphics Processors, Multi-VGA output support : HDMI/DVI-D/D-Sub ports, Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz, Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz.
• Ενσωματωμένη κάρτα ήχου: Realtek ALC887-VD2 8-Channel High Definition Audio CODEC.
• Ενσωματωμένη κάρτα δικτύου: Realtek RTL8111H, 1 x Gigabit LAN Controller(s).
• Συμβατό λειτουργικό σύστημα: Microsoft Windows 10 64-bit.
• Εγγύηση: 3 χρόνια. DOA 7 ημερών
