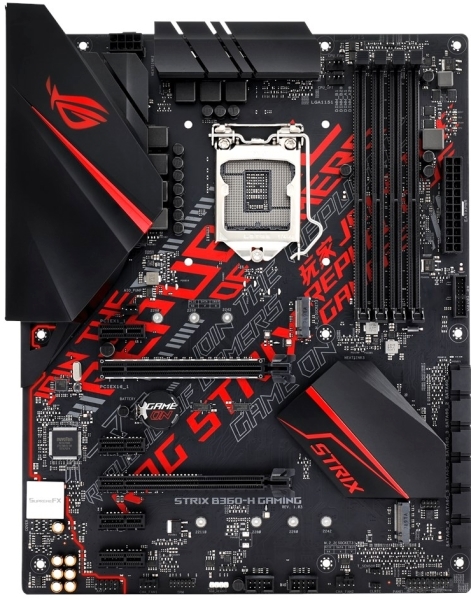

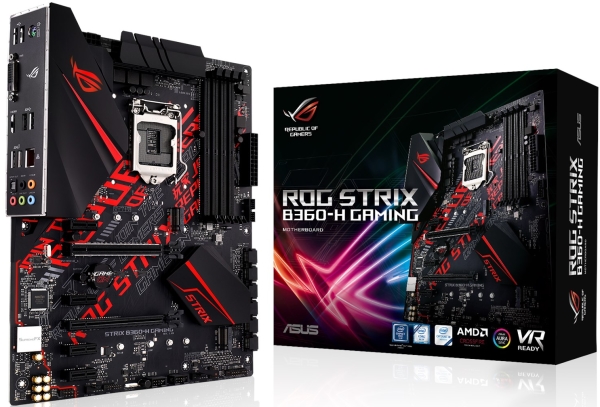

ΜΗΤΡΙΚΗ ASUS ROG STRIX B360-H GAMING RETAIL

Κατηγορία: ΜΗΤΡΙΚΗ ΚΑΡΤΑ •
ASUS στην κατηγορία ΜΗΤΡΙΚΗ ΚΑΡΤΑ

ASUS ROG STRIX B360-H GAMING LGA1151 (300 Series) DDR4 HDMI DVI M.2 ATX Motherboard.

• Τύπος: ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm).
• Επεξεργαστές: Intel Socket 1151 for 8th Generation Core Processors.
• Chipset: Intel B360.
• Μνήμες: 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered, Register Memory.
• Υποστήριξη δίσκων: 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode), 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 6 x SATA 6Gb/s port(s).
• Θύρες επέκτασης: 2 x PCIe 3.0/2.0 x16 (x16/x4), 4 x PCIe 3.0/2.0 x1.
• Εσωτερικές συνδέσεις: 1 x AAFP connector, 1 x Aura RGB Strip Header, 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) , 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 1 x TPM connector(s) , 6 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 1 x CPU OPT Fan connector(s) (1 x 4 -pin), 2 x Chassis Fan connector(s) (2 x 4 -pin), 1 x AIO_PUMP connector , 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x Clear CMOS jumper(s), 1 x System panel connector, 1 x Thermal sensor connector.
• Εξωτερικές συνδέσεις: 1 x PS/2 keyboard/mouse combo port(s), 1 x DVI, 1 x HDMI, 1 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 2 (red)Type-A, , 2 x USB 3.1 Gen 1 (blue) , 2 x USB 2.0 , 1 x Optical S/PDIF out, 5 x Audio jack(s).
• Γραφικά: Integrated Graphics Processor- Intel HD Graphics support, Multi-VGA output support : HDMI/DVI-D ports, Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz, Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz.
• Ενσωματωμένη κάρτα ήχου: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A.
• Ενσωματωμένη κάρτα δικτύου: Intel I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY).
• Συμβατό λειτουργικό σύστημα: Microsoft Windows 10 64-bit.
• Εγγύηση: 3 χρόνια. DOA 7 ημερών
