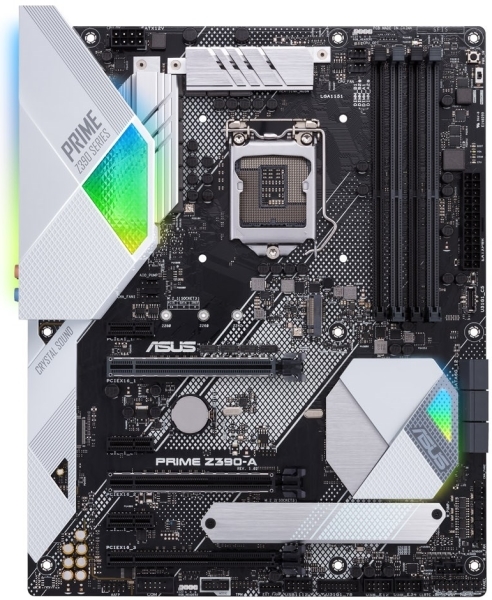

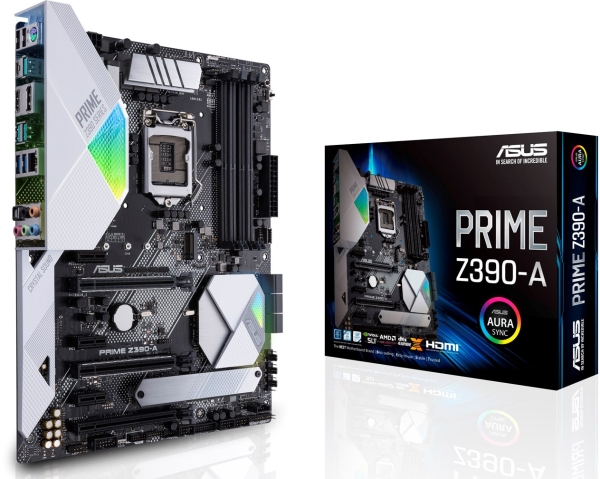

ΜΗΤΡΙΚΗ ASUS PRIME Z390-A RETAIL

Κατηγορία: ΜΗΤΡΙΚΗ ΚΑΡΤΑ •
ASUS στην κατηγορία ΜΗΤΡΙΚΗ ΚΑΡΤΑ

Σχεδιασμένη για επεξεργαστές Intel Core 9ης γενιάς, η Prime Z390 προσφέρει μέγιστη απόδοση με προσαρμόσιμο το στυλ. Διαθέτει λειτουργίες 5-Way Optimization, ενώ οι θύρες M.2 και USB 3.1 Gen2 παρέχουν μέγιστες ταχύτητες μεταφοράς.

• Τύπος μητρικής: ATX (30.5 cm x 24.4 cm).
• Chipset: Intel Z390.
• Socket: LGA 1151, 9th / 8th Generation Pentium/Celeron Processors.
• Μνήμη: 4 x DIMM, Max. 64GB, DDR4, 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory.
• Θύρες επέκτασης: 2 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x4+x4*, x8+x4+x4/x0**), 1 x PCIe 3.0/2.0 x16 (max at x4 mode), 3 x PCIe 3.0/2.0 x1 .
• Υποστήριξη σκληρών δίσκων: 1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode), 6 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 5, 10, Intel Optane Memory Ready.
• Εξωτερικές συνδέσεις: 1 x PS/2 keyboard/mouse combo port(s), 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 3 x USB 3.1 Gen 2 (teal blue)Type-A, 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.1 Gen 1 (blue) Type-A , 2 x USB 2.0 , 1 x Optical S/PDIF out, 5 x Audio jack(s).
• Εσωτερικές συνδέσεις: 2 x Aura RGB Strip Headers, 1 x USB 3.1 Gen 1 front panel TypeC connector, 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) , 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s), 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 1 x TPM header, 1 x COM port(s) connector(s), 6 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 1 x CPU OPT Fan connector(s) (1 x 4 -pin), 2 x Chassis Fan connector(s) (2 x 4 -pin), 1 x AIO_PUMP connector (1 x 4 -pin), 1 x W_PUMP+ connector , 1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support, 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s) (Q-Connector), 1 x MemOK! II switch(es), 1 x CPU OV, 1 x Power-on button(s), 1 x Clear CMOS jumper(s), 1 x Node Connector(s), 1 x EXT_Fan header, 1 x Thermal sensor connector, 1 x M.2 Fan Header
• Ενσωματωμένη κάρτα δικτύου: Intel I219V, 1 x Gigabit LAN Controller.
• Γραφικά: Υποστηρίζει μέσω CPU με ενσωματωμένα γραφικά (απαιτείται η αγορά του), Multi-VGA output support : HDMI/DVI-D ports, Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz, Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz
• Ενσωματωμένη κάρτα ήχου: Realtek ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3.
• Εγγύηση: 3 χρόνια. DOA 7 ημερών
