ΜΗΤΡΙΚΗ ASUS PRIME A520M-K RETAIL

Κατηγορία: ΜΗΤΡΙΚΗ ΚΑΡΤΑ •
ASUS στην κατηγορία ΜΗΤΡΙΚΗ ΚΑΡΤΑ

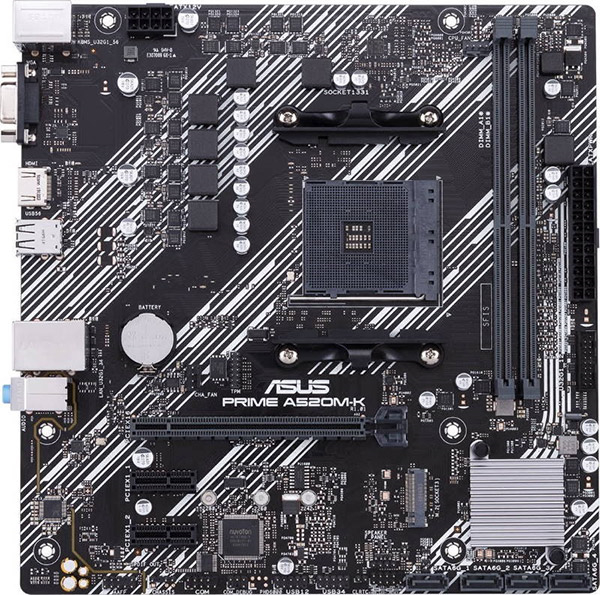

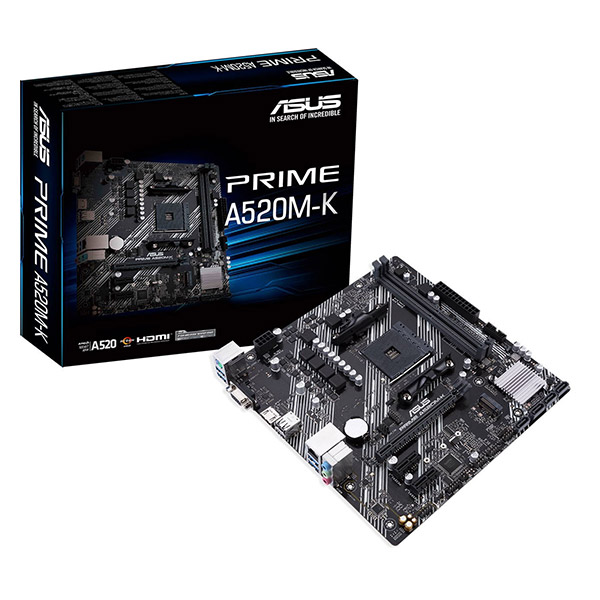

Μητρική κάρτα ASUS PRIME A520M-K.

• Τύπος: mATX Form Factor (22.6 cm x 22.1 cm).
• Επεξεργαστές: AMD AM4 Socket for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors.
• Chipset: AMD A520.
• Μνήμες: 2 x DIMM, Max. 64GB, DDR4 4600(O.C.)/4400(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory.
• Υποστήριξη δίσκων: Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports, 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors: M.2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) / AMD A520 Chipset: 4 x SATA 6Gb/s ports.
• Θύρες επέκτασης: 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors: 1 x PCIe 3.0 x16 slot (supports x16 mode) / AMD A520 Chipset: 2 x PCIe 3.0 x1 slots.
• Εσωτερικές συνδέσεις: 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x M.2 slot (Key M) , 4 x SATA 6Gb/s ports, 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP) , 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header.
• Εξωτερικές συνδέσεις: 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A) , 1 x D-Sub port, 1 x HDMITM port, 1 x Realtek RTL8111H 1Gb Ethernet port, 3 x Audio jacks , 1 x PS/2 Keyboard/Mouse combo port.
• Γραφικά: Integrated Graphics Processor: 1 x D-Sub, 1 x HDMITM 2.1(4k@60HZ).
• Ενσωματωμένη κάρτα ήχου: Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC.
• Ενσωματωμένη κάρτα δικτύου: 1 x Realtek 8111H 1Gb Ethernet.
• Συμβατό λειτουργικό σύστημα: Microsoft Windows 10 64-bit.
• Εγγύηση: 3 χρόνια. DOA 7 ημερών
