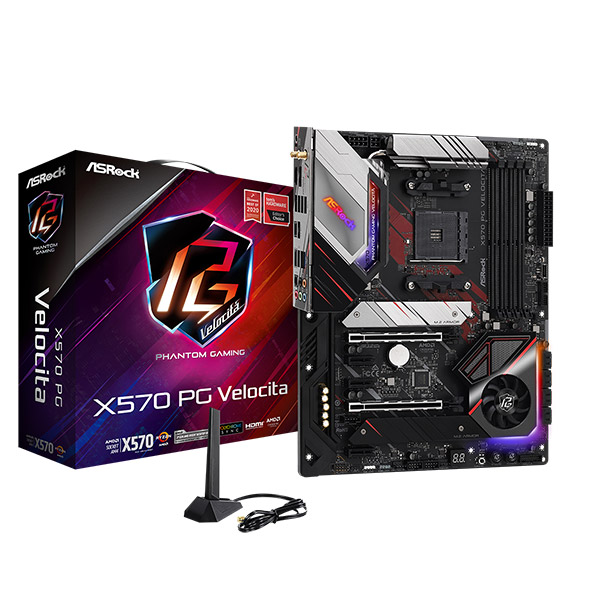

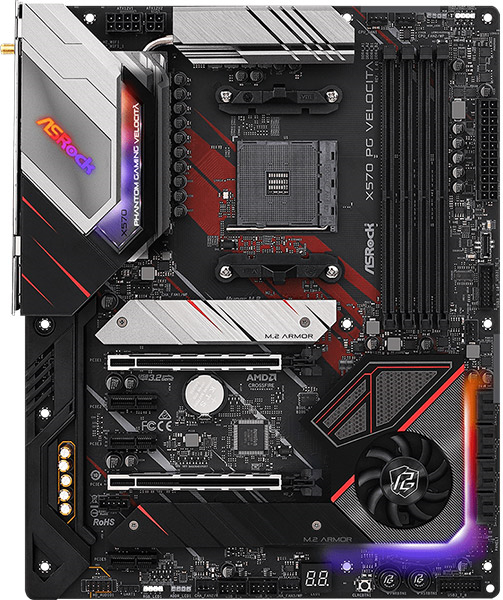

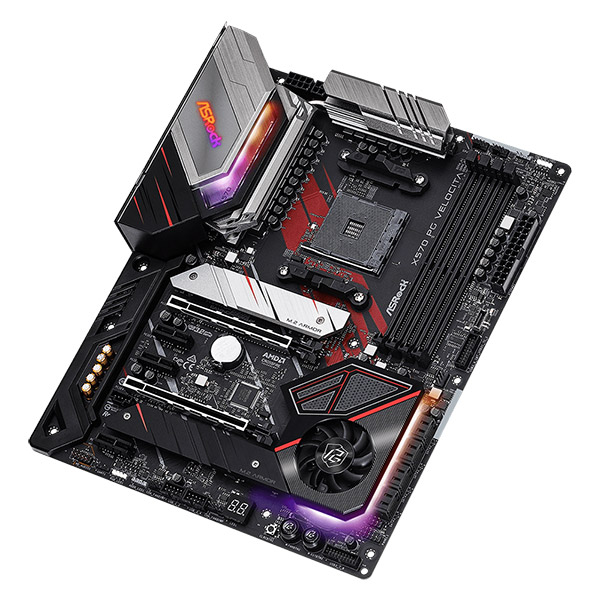

ΜΗΤΡΙΚΗ ASROCK X570 PG VELOCITA RETAIL

Κατηγορία: ΜΗΤΡΙΚΗ ΚΑΡΤΑ •
ASROCK στην κατηγορία ΜΗΤΡΙΚΗ ΚΑΡΤΑ

Η Asrock είναι μια από τις ταχύτερα αναπτυσσόμενες εταιρείες στην κατασκευή motherboard. Από την ίδρυση της η Asrock έχει καταφέρει σε σύντομο χρονικό διάστημα τη δημιουργία σε μητρικές κάρτες που ενσωματώνουν όλες τις νέες τεχνολογίες σε ιδιαίτερα προσιτές τιμές.

• Τύπος: ATX (30.5 cm x 24.4 cm).
• Επεξεργαστές: Supports AMD AM4 Socket Ryzen 2000, 3000, 4000 G-Series and 5000 Series Desktop Processors.
• Chipset: AMD X570.
• Μνήμες: 4 x DDR4 DIMM Slots, AMD Ryzen series CPUs (Vermeer) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, AMD Ryzen series CPUs (Matisse) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, AMD Ryzen series APUs (Renoir) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, AMD Ryzen series APUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory, Max. capacity of system memory: 128GB.
• Υποστήριξη δίσκων: 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Renoir, Pinnacle Ridge and Picasso), 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s).
• Θύρες επέκτασης: AMD Ryzen series CPUs (Vermeer, Matisse): 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4)), AMD Ryzen series CPUs (Renoir, Pinnacle Ridge): 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4)), AMD Ryzen series APUs (Picasso): 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE4)), 3 x PCI Express 4.0 x1 Slots, 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O), 15μ Gold Contact in VGA PCIe Slot (PCIE1).
• Εσωτερικές συνδέσεις: 1 x Power LED and Speaker Header, 2 x RGB LED Headers, 2 x Addressable LED Headers, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector (Hi-Density Power Connector), 1 x 8 pin 12V Power Connector (Hi-Density Power Connector), 1 x 4 pin 12V Power Connector (Hi-Density Power Connector), 1 x Front Panel Audio Connector (15μ Gold Audio Connector), 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only), 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection), 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection), 1 x Dr. Debug with LED, 1 x Power Button with LED, 1 x Reset Button with LED, 1 x Clear CMOS Button.

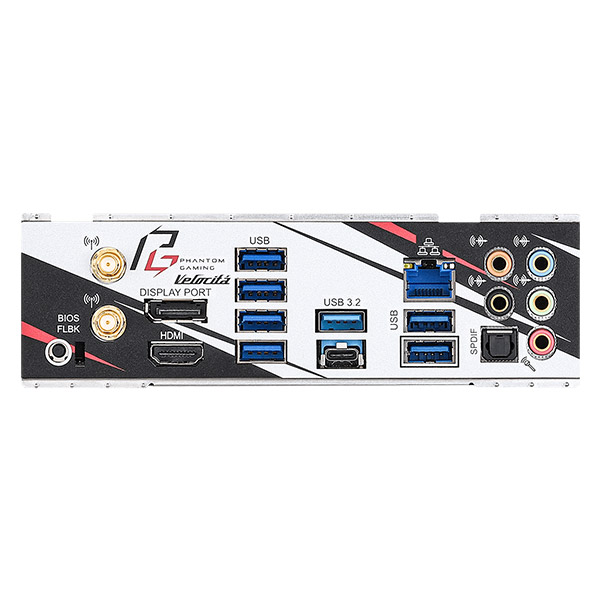

• Εξωτερικές συνδέσεις: 2 x Antenna Ports, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x Optical SPDIF Out Port, 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), 6 x USB 3.2 Gen1 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), 1 x BIOS Flashback Button with LED, HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks).
• Γραφικά: Integrated Graphics Processor.
• Ενσωματωμένη κάρτα ήχου: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec.
• Ενσωματωμένη κάρτα δικτύου: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, 1 x Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s).
• Wireless & Bluetooth: Killer AX1650x 802.11ax WiFi Module, Supports IEEE 802.11a/b/g/n/ax, Supports Dual-Band (2.4/5 GHz), Supports Killer WiFi6 802.11ax (2.4Gbps), 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.1 + High speed class II.
• Συμβατό λειτουργικό σύστημα: Microsoft Windows 10 64-bit.
• Εγγύηση: 3 χρόνια. DOA 7 ημερών
