ÕðïóôÞñéîç äßóêùí: 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s), 1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s).
Èýñåò åðÝêôáóçò: 3 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3/PCIE4: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE3); triple at x16 (PCIE1) / x16 (PCIE3) / x16 (PCIE4), 1 x PCI Express 4.0 x1 Slot, 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ax module, 15ì Gold Contact in VGA PCIe Slots (PCIE1, PCIE3 and PCIE4).
ÅóùôåñéêÝò óõíäÝóåéò: 1 x Power LED and Speaker Header, 2 x RGB LED Headers, 2 x Addressable LED Headers, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector (Hi-Density Power Connector), 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector), 1 x Front Panel Audio Connector (15ì Gold Audio Connector), 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection), 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection), 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection), 1 x Dr. Debug with LED, 1 x Power Button with LED, 1 x Reset Button with LED, 1 x Clear CMOS Button.

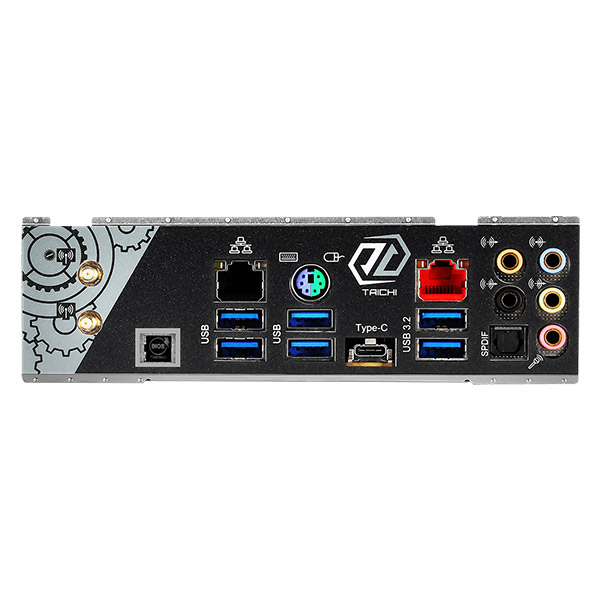

ÅîùôåñéêÝò óõíäÝóåéò: 2 x Antenna Ports (on I/O Panel Shield), 1 x PS/2 Mouse/Keyboard Port, 1 x Optical SPDIF Out Port, 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection), 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection), 4 x USB 3.2 Gen1 Ports (Supports ESD Protection), 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED), 1 x BIOS Flashback Button, HD Audio Jacks: Rear Speaker / Central / Line in / Front Speaker / Microphone (Gold Audio Jacks).
ÃñáöéêÜ: Integrated Graphics Processor.
ÅíóùìáôùìÝíç êÜñôá Þ÷ïõ: 7.1 CH HD Audio (Realtek ALC4050H+ALC1220).
ÅíóùìáôùìÝíç êÜñôá äéêôýïõ: 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125AG), 1 x Intel® Gigabit LAN 10/100/1000 Mb/s (1 x Intel® I211AT.
Wireless & Bluetooth: - Intel® 802.11ax WiFi Module, Supports IEEE 802.11a/b/g/n/ax, Supports Dual-Band (2.4/5 GHz), Supports WiFi6 802.11ax (2.4Gbps), 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.0 + High speed class II.
Óõìâáôü ëåéôïõñãéêü óýóôçìá: Microsoft Windows 10 64-bit.
• Ôýðïò: ATX (30.5 cm x 24.4 cm). • ÅðåîåñãáóôÝò: Supports AMD Socket sTRX4. • Chipset: AMD TRX40. • ÌíÞìåò: Quad Channel DDR4 Memory Technology, 8 x DDR4 DIMM Slots, Supports DDR4 4666(OC)+ / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory (U-DIMM), Max. capacity of system memory: 256GB. • ÕðïóôÞñéîç äßóêùí: 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s), 1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s). • Èýñåò åðÝêôáóçò: 3 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3/PCIE4: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE3); triple at x16 (PCIE1) / x16 (PCIE3) / x16 (PCIE4), 1 x PCI Express 4.0 x1 Slot, 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ax module, 15ì Gold Contact in VGA PCIe Slots (PCIE1, PCIE3 and PCIE4). • ÅóùôåñéêÝò óõíäÝóåéò: 1 x Power LED and Speaker Header, 2 x RGB LED Headers, 2 x Addressable LED Headers, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector (Hi-Density Power Connector), 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector), 1 x Front Panel Audio Connector (15ì Gold Audio Connector), 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection), 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection), 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection), 1 x Dr. Debug with LED, 1 x Power Button with LED, 1 x Reset Button with LED, 1 x Clear CMOS Button. • ÅîùôåñéêÝò óõíäÝóåéò: 2 x Antenna Ports (on I/O Panel Shield), 1 x PS/2 Mouse/Keyboard Port, 1 x Optical SPDIF Out Port, 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection), 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection), 4 x USB 3.2 Gen1 Ports (Supports ESD Protection), 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED), 1 x BIOS Flashback Button, HD Audio Jacks: Rear Speaker / Central / Line in / Front Speaker / Microphone (Gold Audio Jacks). • ÃñáöéêÜ: Integrated Graphics Processor. • ÅíóùìáôùìÝíç êÜñôá Þ÷ïõ: 7.1 CH HD Audio (Realtek ALC4050H+ALC1220). • ÅíóùìáôùìÝíç êÜñôá äéêôýïõ: 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125AG), 1 x Intel® Gigabit LAN 10/100/1000 Mb/s (1 x Intel® I211AT. • Wireless & Bluetooth: - Intel® 802.11ax WiFi Module, Supports IEEE 802.11a/b/g/n/ax, Supports Dual-Band (2.4/5 GHz), Supports WiFi6 802.11ax (2.4Gbps), 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.0 + High speed class II. • Óõìâáôü ëåéôïõñãéêü óýóôçìá: Microsoft Windows 10 64-bit. • Åããýçóç: 3 ÷ñüíéá. DOA 7 çìåñþí
