ÅðåîåñãáóôÝò: Supports 10th Gen Intel Core Processors (Socket 1200).
Chipset: Intel B460.
ÌíÞìåò: 4 x DDR4 DIMM Slots, Dual Channel DDR4 Memory Technology, 2 x DDR4 DIMM Slots, Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory, Supports ECC UDIMM memory modules (operate in non-ECC mode), Max. capacity of system memory: 128GB.
ÕðïóôÞñéîç äßóêùí: 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug, 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s), 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s).
Èýñåò åðÝêôáóçò: 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)), 1 x PCI Express 3.0 x1 Slot, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module.
ÅóùôåñéêÝò óõíäÝóåéò: 1 x SPI TPM Header, 1 x Chassis Intrusion and Speaker Header, 1 x RGB LED Header, 2 x Addressable LED Headers, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector (Hi-Density Power Connector), 1 x 8 pin 12V Power Connector (Hi-Density Power Connector), 1 x Front Panel Audio Connector, 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only), 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection).

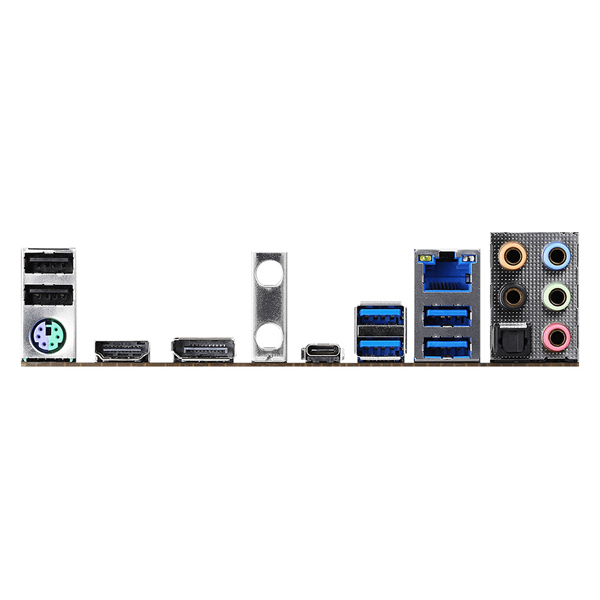

ÅîùôåñéêÝò óõíäÝóåéò: 1 x Antenna Bracket, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x Optical SPDIF Out Port, 2 x USB 2.0 Ports (Supports ESD Protection), 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection), 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks).
ÃñáöéêÜ: Integrated Graphics.
ÅíóùìáôùìÝíç êÜñôá Þ÷ïõ: 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec).
ÅíóùìáôùìÝíç êÜñôá äéêôýïõ: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG.
• Ôýðïò: Micro ATX Form Factor (24.4 cm x 24.4 cm). • ÅðåîåñãáóôÝò: Supports 10th Gen Intel Core Processors (Socket 1200). • Chipset: Intel B460. • ÌíÞìåò: 4 x DDR4 DIMM Slots, Dual Channel DDR4 Memory Technology, 2 x DDR4 DIMM Slots, Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory, Supports ECC UDIMM memory modules (operate in non-ECC mode), Max. capacity of system memory: 128GB. • ÕðïóôÞñéîç äßóêùí: 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug, 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s), 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s). • Èýñåò åðÝêôáóçò: 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)), 1 x PCI Express 3.0 x1 Slot, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module. • ÅóùôåñéêÝò óõíäÝóåéò: 1 x SPI TPM Header, 1 x Chassis Intrusion and Speaker Header, 1 x RGB LED Header, 2 x Addressable LED Headers, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector (Hi-Density Power Connector), 1 x 8 pin 12V Power Connector (Hi-Density Power Connector), 1 x Front Panel Audio Connector, 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only), 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection). • ÅîùôåñéêÝò óõíäÝóåéò: 1 x Antenna Bracket, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x Optical SPDIF Out Port, 2 x USB 2.0 Ports (Supports ESD Protection), 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection), 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks). • ÃñáöéêÜ: Integrated Graphics. • ÅíóùìáôùìÝíç êÜñôá Þ÷ïõ: 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec). • ÅíóùìáôùìÝíç êÜñôá äéêôýïõ: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG. • Ëåéôïõñãéêü óýóôçìá: Microsoft Windows 10 64-bit. • Åããýçóç: 3 ÷ñüíéá. DOA 7 çìåñþí
ÌÇÔÑÉÊÇ ASROCK B460M STEEL LEGEND RETAILPER.529112PER.529112ASROCKASROCKÌÇÔÑÉÊÇ ÊÁÑÔÁÊáôçãïñßá: ÌÇÔÑÉÊÇ ÊÁÑÔÁ •ASROCK óôçí êáôçãïñßá ÌÇÔÑÉÊÇ ÊÁÑÔÁ ASROCK B460M STEEL LEGEND motherboard. • Ôýðïò: Micro ATX Form Factor (24.4 cm x 24.4 cm).• ÅðåîåñãáóôÝò: Supports 10th Gen Intel Core Processors (Socket 1200).• Chipset: Intel B460.• ÌíÞìåò: 4 x DDR4 DIMM Slots, Dual Channel DDR4 Memory Technology, 2 x DDR4 DIMM Slots, Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory, Supports ECC UDIMM memory modules (operate in non-ECC mode), Max. capacity of system memory: 128GB.• ÕðïóôÞñéîç äßóêùí: 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug, 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s), 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s).• Èýñåò åðÝêôáóçò: 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)), 1 x PCI Express 3.0 x1 Slot, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module.• ÅóùôåñéêÝò óõíäÝóåéò: 1 x SPI TPM Header, 1 x Chassis Intrusion and Speaker Header, 1 x RGB LED Header, 2 x Addressable LED Headers, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector (Hi-Density Power Connector), 1 x 8 pin 12V Power Connector (Hi-Density Power Connector), 1 x Front Panel Audio Connector, 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only), 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection).• ÅîùôåñéêÝò óõíäÝóåéò: 1 x Antenna Bracket, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x Optical SPDIF Out Port, 2 x USB 2.0 Ports (Supports ESD Protection), 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection), 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks).• ÃñáöéêÜ: Integrated Graphics.• ÅíóùìáôùìÝíç êÜñôá Þ÷ïõ: 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec).• ÅíóùìáôùìÝíç êÜñôá äéêôýïõ: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG.• Ëåéôïõñãéêü óýóôçìá: Microsoft Windows 10 64-bit.• Åããýçóç: 3 ÷ñüíéá. DOA 7 çìåñþí ÌÇÔÑÉÊÇ ASROCK B460M STEEL LEGEND RETAIL
