Ôýðïò: ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm.
ÅðåîåñãáóôÝò: Supports 10th Gen Intel Core Processors (Socket 1200).
Chipset: Intel B460.
ÌíÞìåò: 4 x DDR4 DIMM Slots, Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory, Supports ECC UDIMM memory modules (operate in non-ECC mode), Max. capacity of system memory: 128GB.
ÕðïóôÞñéîç äßóêùí: 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug, 1 x Ultra M.2 Socket (M2_2), supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s).
Èýñåò åðÝêôáóçò: 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3), 2 x PCI Express 3.0 x1 Slots, Supports AMD Quad CrossFireX and CrossFireX, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module.
ÅóùôåñéêÝò óõíäÝóåéò: 1 x COM Port Header, 1 x SPI TPM Header, 1 x Chassis Intrusion and Speaker Header, 2 x RGB LED Headers, 2 x Addressable LED Headers, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector, 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only), 2 x USB 2.0 Headers (Supports 3 USB 2.0 ports) (Supports ESD Protection), 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection).

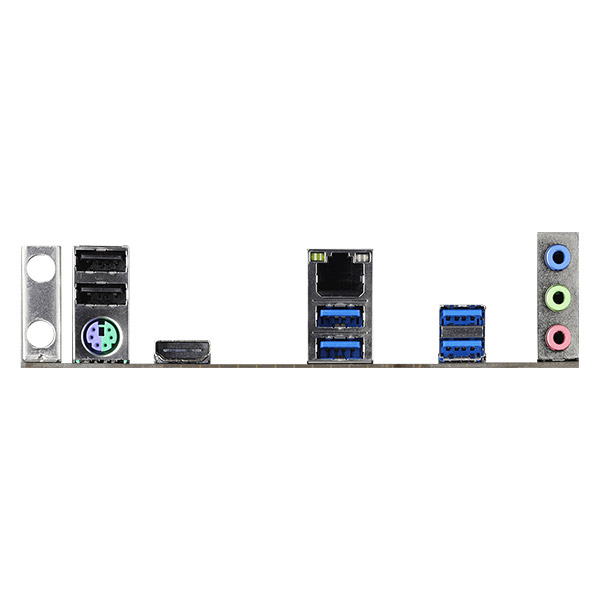

ÅîùôåñéêÝò óõíäÝóåéò: 1 x Antenna Bracket, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection), 2 x USB 2.0 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone.
ÃñáöéêÜ: Integrated Graphics Processor.
ÅíóùìáôùìÝíç êÜñôá Þ÷ïõ: 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec).
• Ôýðïò: ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm. • ÅðåîåñãáóôÝò: Supports 10th Gen Intel Core Processors (Socket 1200). • Chipset: Intel B460. • ÌíÞìåò: 4 x DDR4 DIMM Slots, Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory, Supports ECC UDIMM memory modules (operate in non-ECC mode), Max. capacity of system memory: 128GB. • ÕðïóôÞñéîç äßóêùí: 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug, 1 x Ultra M.2 Socket (M2_2), supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s). • Èýñåò åðÝêôáóçò: 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3), 2 x PCI Express 3.0 x1 Slots, Supports AMD Quad CrossFireX and CrossFireX, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module. • ÅóùôåñéêÝò óõíäÝóåéò: 1 x COM Port Header, 1 x SPI TPM Header, 1 x Chassis Intrusion and Speaker Header, 2 x RGB LED Headers, 2 x Addressable LED Headers, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector, 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only), 2 x USB 2.0 Headers (Supports 3 USB 2.0 ports) (Supports ESD Protection), 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection). • ÅîùôåñéêÝò óõíäÝóåéò: 1 x Antenna Bracket, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection), 2 x USB 2.0 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone. • ÃñáöéêÜ: Integrated Graphics Processor. • ÅíóùìáôùìÝíç êÜñôá Þ÷ïõ: 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec). • ÅíóùìáôùìÝíç êÜñôá äéêôýïõ: Gigabit LAN 10/100/1000 Mb/s, Giga PHY Intel I219V. • Óõìâáôü ëåéôïõñãéêü óýóôçìá: Microsoft Windows 10 64-bit. • Åããýçóç: 3 ÷ñüíéá. DOA 7 çìåñþí
