Το Cisco SPA122 ATA με router,συνδιάζει την λειτουργία VOIP με ένα εσωτερικό router για ενσύρματη LAN σύνδεση. Εύκολο στην εγκατάσταση και στην χρήση, λειτουργεί σε ένα IP δίκτυο για να συνδέσει αναλογικές συσκευές τηλεφώνου και φαξ σε έναν πάροχο VOIP και προσφέρει επιπλέον υποστήριξη για συνδέσεις LAN. Το Cisco SPA122 διαθέτει 2 θύρες τηλεφώνου, 2 θύρες 100BASE-T RJ-45 Ethernet για συνδέσεις WAN και LAN. Η κάθε τηλεφωνική γραμμή μπορεί να ρυθμιστεί ξεχωριστά.
Πρωτόκολλα Επικοινωνίας: MAC address (IEEE 802.3), IPv4 (RFC 791) upgradeable to IPv6 (RFC 1883), Address Resolution Protocol (ARP), Domain Name System (DNS) A record (RFC 1706) and SRV record (RFC 2782), Dynamic Host Configuration Protocol (DHCP) server and client (RFC 2131), DHCP client reservation, DHCP Options 159 and 160, Point-to-Point Protocol over Ethernet (PPoE) client (RFC 2516),
Internet Control Message Protocol (ICMP) (RFC 792), TCP (RFC 793), User Datagram Protocol (UDP) (RFC 768), Real Time Protocol (RTP) (RFC 1889) (RFC 1890), Real Time Control Protocol (RTCP) (RFC 1889), Differentiated Services (DiffServ) (RFC 2475) and type of service (ToS) (RFC 791/1349), VLAN tagging (IEEE 802.1p), Simple Network Time Protocol (SNTP) (RFC 2030), Upload data rate limiting: static and automatic, QoS voice packet prioritization over other packet types, MAC address cloning, Port forwarding, SIP channels support both UDP and TCP transport, VPN pass-through with IP Security encapsulating security payload (IPsec ESP), Point-to-Point Tunneling Protocol
Voice Gateway: SIPv2 (RFC 3261, 3262, 3263, and 3264), SIP proxy redundancy: dynamic through use of DNS SRV A records,
Reregistration with primary SIP proxy server, SIP support in Network Address Translation (NAT) networks (including Serial Tunnel [STUN]), Highly secure (encrypted) calling using Secure RTP (SRTP), Codec name assignment, G.711 (A-law and μ-law), G.726 (32 kbps),
G.729 A, Dynamic payload, Adjustable audio frames per packet, Dual-tone multifrequency (DTMF): in-band and out-of-band (RFC 2833) (SIP information).
Voice features: QoS (Ethernet port upstream bandwidth control), Independent configurable dial plans with interdigit timers and IP dialing (1 per port), Call progress tone generation, Jitter buffer: Adaptive, Frame loss concealment, Full-duplex audio, Echo cancellation (G.165 and G.168), Voice activity detection (VAD), Silence suppression, Comfort noise generation (CNG), Attenuation and gain adjustments, Flash hook timer, Message waiting indicator (MWI) tones, Visual messaging waiting indicator (VMWI) using frequency shift keying (FSK), Polarity control, Hook flash event signaling, Caller ID generation (name and number): Bellcore, DTMF, and European Telecommunications Standards Institute (ETSI), Streaming audio server: Up to 10 sessions, Music on hold, Call waiting, call waiting and caller ID, Caller ID with name and number, Caller ID blocking, Selective and anonymous call rejection, Call forwarding: No answer, busy, and all, Do not disturb, Call transfer, call return, and call back on busy, Three-way conference calling with local mixing, Per-call authentication and associated routing, Call blocking with toll restriction, Distinctive ringing: Calling and called number, Off-hook warning tone, Advanced inbound and outbound call routing, Hotline and warmline calling, Long silence (configurable time setting) silence threshold, Disconnect tone (for example, reorder tone), Configurable ring frequency, Ring validation time setting, Tip and ring voltage adjustment setting,Ring indication delay setting.
Φαξ: Fax tone detection pass-through, Fax pass-through using G.711, Real-time fax over IP using T.38 fax relay (T.38 support is dependent on fax machine and network and transport resilience).
Ασφάλεια: Password-protected system reset to factory default, Password-protected administrator and user access authority,
Provisioning, configuration, and authentication, HTTPS with factory-installed client certificate, HTTP digest: Encrypted authentication using MD5 (RFC 1321), Up to 256-bit Advanced Encryption Standard (AES) encryption, SIP Transport Layer Security (TLS).
Διαχείρηση: Web browser administration and configuration using integral web server, Telephone keypad configuration with interactive voice prompts, Automated provisioning and upgrade using HTTPS, HTTP, and Trivial File Transfer Protocol (TFTP), TR-069,
Asynchronous notification of upgrade availability using Notify, Nonintrusive, in-service upgrades, Report generation and event logging,
Statistics in Bye message, Debug and syslog server records: Per-line configurable web browser, Ping and traceroute diagnostics, Configuration management: Backup and restore, Support for Bonjour.

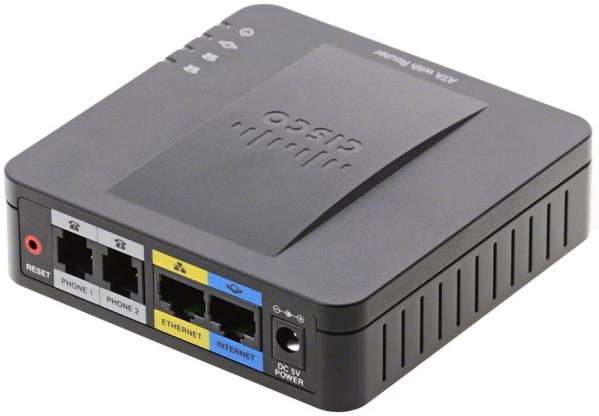

Θύρες: 1x WAN 100BASE-T RJ-45 Ethernet Port (IEEE 802.3), 1x LAN 100BASE-T RJ-45 Ethernet Port (IEEE 802.3), 2x RJ-11 FXS phone ports for analog circuit telephone device (tip and ring).
Πλήκτρα: Reset.
Subscriber line interface circuit (SLIC): Ring voltage: 40-90 Vpk configurable, Ring frequency: 20-25 Hz, Ring waveform: Trapezoidal, Maximum ringer load: 5 ringer equivalence numbers (RENs), On-hook voltage (tip and ring): -46 to -56V, Off-hook current: 18-25 mA, Terminating impedance: 600 ohm resistive or 270 ohm + 750 ohm, 150 nF complex impedance, Frequency response: 300-3400 Hz,
Return loss (600 ohm, 300-3400 Hz): up to 20 dB, Insertion loss (1 Vrms at 1 kHz): 3-4 dB, Total harmonic distortion (THD) (350 mV peak at 300 Hz): up to 3%, Idle channel noise: 72 dB (typical), Longitudinal balance: 55 dB (typical), Off-hook threshold (line seizure): Rdc < 1000 ohm, On-hook threshold (line release): Rdc >10000 ohm, Rdc DC supervisory range: Rdc > 450 ohm.
Ενδείξεις LED: Phone 1, phone 2, Internet, and power.
Πιστοποίηση: FCC (Part 15 Class B), CE, ICES-003, A-Tick certification, RoHS, and UL.
Τροφοδοσία: DC input voltage: 5V DC at 2.0A maximum, Power consumption: 5W, Switching type (100-240V) automatic, Power adapter: 100-240V and 50-60 Hz (26-34 VA) AC input, with 1.8m cord.
Το Cisco SPA122 ATA με router, συνδιάζει την λειτουργία VOIP με ένα εσωτερικό router για ενσύρματη LAN σύνδεση. Εύκολο στην εγκατάσταση και στην χρήση, λειτουργεί σε ένα IP δίκτυο για να συνδέσει αναλογικές συσκευές τηλεφώνου και φαξ σε έναν πάροχο VOIP και προσφέρει επιπλέον υποστήριξη για συνδέσεις LAN. Το Cisco SPA122 διαθέτει 2 θύρες τηλεφώνου, 2 θύρες 100BASE-T RJ-45 Ethernet για συνδέσεις WAN και LAN. Η κάθε τηλεφωνική γραμμή μπορεί να ρυθμιστεί ξεχωριστά.
• Πρωτόκολλα Επικοινωνίας: MAC address (IEEE 802.3), IPv4 (RFC 791) upgradeable to IPv6 (RFC 1883), Address Resolution Protocol (ARP), Domain Name System (DNS) A record (RFC 1706) and SRV record (RFC 2782), Dynamic Host Configuration Protocol (DHCP) server and client (RFC 2131), DHCP client reservation, DHCP Options 159 and 160, Point-to-Point Protocol over Ethernet (PPoE) client (RFC 2516),
Internet Control Message Protocol (ICMP) (RFC 792), TCP (RFC 793), User Datagram Protocol (UDP) (RFC 768), Real Time Protocol (RTP) (RFC 1889) (RFC 1890), Real Time Control Protocol (RTCP) (RFC 1889), Differentiated Services (DiffServ) (RFC 2475) and type of service (ToS) (RFC 791/1349), VLAN tagging (IEEE 802.1p), Simple Network Time Protocol (SNTP) (RFC 2030), Upload data rate limiting: static and automatic, QoS voice packet prioritization over other packet types, MAC address cloning, Port forwarding, SIP channels support both UDP and TCP transport, VPN pass-through with IP Security encapsulating security payload (IPsec ESP), Point-to-Point Tunneling Protocol
• Voice Gateway: SIPv2 (RFC 3261, 3262, 3263, and 3264), SIP proxy redundancy: dynamic through use of DNS SRV A records,
Reregistration with primary SIP proxy server, SIP support in Network Address Translation (NAT) networks (including Serial Tunnel [STUN]), Highly secure (encrypted) calling using Secure RTP (SRTP), Codec name assignment, G.711 (A-law and μ-law), G.726 (32 kbps),
G.729 A, Dynamic payload, Adjustable audio frames per packet, Dual-tone multifrequency (DTMF): in-band and out-of-band (RFC 2833) (SIP information).
• Voice features: QoS (Ethernet port upstream bandwidth control), Independent configurable dial plans with interdigit timers and IP dialing (1 per port), Call progress tone generation, Jitter buffer: Adaptive, Frame loss concealment, Full-duplex audio, Echo cancellation (G.165 and G.168), Voice activity detection (VAD), Silence suppression, Comfort noise generation (CNG), Attenuation and gain adjustments, Flash hook timer, Message waiting indicator (MWI) tones, Visual messaging waiting indicator (VMWI) using frequency shift keying (FSK), Polarity control, Hook flash event signaling, Caller ID generation (name and number): Bellcore, DTMF, and European Telecommunications Standards Institute (ETSI), Streaming audio server: Up to 10 sessions, Music on hold, Call waiting, call waiting and caller ID, Caller ID with name and number, Caller ID blocking, Selective and anonymous call rejection, Call forwarding: No answer, busy, and all, Do not disturb, Call transfer, call return, and call back on busy, Three-way conference calling with local mixing, Per-call authentication and associated routing, Call blocking with toll restriction, Distinctive ringing: Calling and called number, Off-hook warning tone, Advanced inbound and outbound call routing, Hotline and warmline calling, Long silence (configurable time setting) silence threshold, Disconnect tone (for example, reorder tone), Configurable ring frequency, Ring validation time setting, Tip and ring voltage adjustment setting, Ring indication delay setting.
• Φαξ: Fax tone detection pass-through, Fax pass-through using G.711, Real-time fax over IP using T.38 fax relay (T.38 support is dependent on fax machine and network and transport resilience).
• Ασφάλεια: Password-protected system reset to factory default, Password-protected administrator and user access authority,
Provisioning, configuration, and authentication, HTTPS with factory-installed client certificate, HTTP digest: Encrypted authentication using MD5 (RFC 1321), Up to 256-bit Advanced Encryption Standard (AES) encryption, SIP Transport Layer Security (TLS).
• Διαχείρηση: Web browser administration and configuration using integral web server, Telephone keypad configuration with interactive voice prompts, Automated provisioning and upgrade using HTTPS, HTTP, and Trivial File Transfer Protocol (TFTP), TR-069,
Asynchronous notification of upgrade availability using Notify, Nonintrusive, in-service upgrades, Report generation and event logging,
Statistics in Bye message, Debug and syslog server records: Per-line configurable web browser, Ping and traceroute diagnostics, Configuration management: Backup and restore, Support for Bonjour.
• Θύρες: 1x WAN 100BASE-T RJ-45 Ethernet Port (IEEE 802.3), 1x LAN 100BASE-T RJ-45 Ethernet Port (IEEE 802.3), 2x RJ-11 FXS phone ports for analog circuit telephone device (tip and ring).
• Πλήκτρα: Reset.
• Subscriber line interface circuit (SLIC): Ring voltage: 40-90 Vpk configurable, Ring frequency: 20-25 Hz, Ring waveform: Trapezoidal, Maximum ringer load: 5 ringer equivalence numbers (RENs), On-hook voltage (tip and ring): -46 to -56V, Off-hook current: 18-25 mA, Terminating impedance: 600 ohm resistive or 270 ohm + 750 ohm, 150 nF complex impedance, Frequency response: 300-3400 Hz,
Return loss (600 ohm, 300-3400 Hz): up to 20 dB, Insertion loss (1 Vrms at 1 kHz): 3-4 dB, Total harmonic distortion (THD) (350 mV peak at 300 Hz): up to 3%, Idle channel noise: 72 dB (typical), Longitudinal balance: 55 dB (typical), Off-hook threshold (line seizure): Rdc < 1000 ohm, On-hook threshold (line release): Rdc >10000 ohm, Rdc DC supervisory range: Rdc > 450 ohm.
• Ενδείξεις LED: Phone 1, phone 2, Internet, and power.
• Πιστοποίηση: FCC (Part 15 Class B), CE, ICES-003, A-Tick certification, RoHS, and UL.
• Τροφοδοσία: DC input voltage: 5V DC at 2.0A maximum, Power consumption: 5W, Switching type (100-240V) automatic, Power adapter: 100-240V and 50-60 Hz (26-34 VA) AC input, with 1.8m cord.
• Διαστάσεις (W x H x D): 101 x 101 x 28 mm.
• Βάρος: 153g.
• Εγγύηση: 2 χρόνια. DOA 7 ημερών
Από χρήστη ΕΥΘΥΜΙΟΣ ΚΑΛΑΙΤΖΙΔΗΣ - Βαθμολογία 10 - 13-09-2017
Ποιότητα Cisco!!! Θέλει λιγάκι ψάξιμο στις ρυθμίσεις για βέλτιστη λειτουργία, αν ρυθμιστεί και έπειτα δεν ξανά ασχολείσαι.
Από ανώνυμο χρήστη - Βαθμολογία 10 - 23-01-2017
Το καλύτερο voip adapter, απεριόριστες δυνατότητες!
Από ανώνυμο χρήστη - Βαθμολογία 10 - 11-01-2013
Τέλειο επιτέλους περίμενα καιρό αλλά άξιζε !!!!!!!!
CISCO SPA122 ATA WITH ROUTERPER.613948PER.613948CISCOCISCOVOIP ADAPTERSΚατηγορία: VOIP ADAPTERS •CISCO στην κατηγορία VOIP ADAPTERS Το Cisco SPA122 ATA με router, συνδιάζει την λειτουργία VOIP με ένα εσωτερικό router για ενσύρματη LAN σύνδεση. Εύκολο στην εγκατάσταση και στην χρήση, λειτουργεί σε ένα IP δίκτυο για να συνδέσει αναλογικές συσκευές τηλεφώνου και φαξ σε έναν πάροχο VOIP και προσφέρει επιπλέον υποστήριξη για συνδέσεις LAN. Το Cisco SPA122 διαθέτει 2 θύρες τηλεφώνου, 2 θύρες 100BASE-T RJ-45 Ethernet για συνδέσεις WAN και LAN. Η κάθε τηλεφωνική γραμμή μπορεί να ρυθμιστεί ξεχωριστά.
• Πρωτόκολλα Επικοινωνίας: MAC address (IEEE 802.3), IPv4 (RFC 791) upgradeable to IPv6 (RFC 1883), Address Resolution Protocol (ARP), Domain Name System (DNS) A record (RFC 1706) and SRV record (RFC 2782), Dynamic Host Configuration Protocol (DHCP) server and client (RFC 2131), DHCP client reservation, DHCP Options 159 and 160, Point-to-Point Protocol over Ethernet (PPoE) client (RFC 2516),
Internet Control Message Protocol (ICMP) (RFC 792), TCP (RFC 793), User Datagram Protocol (UDP) (RFC 768), Real Time Protocol (RTP) (RFC 1889) (RFC 1890), Real Time Control Protocol (RTCP) (RFC 1889), Differentiated Services (DiffServ) (RFC 2475) and type of service (ToS) (RFC 791/1349), VLAN tagging (IEEE 802.1p), Simple Network Time Protocol (SNTP) (RFC 2030), Upload data rate limiting: static and automatic, QoS voice packet prioritization over other packet types, MAC address cloning, Port forwarding, SIP channels support both UDP and TCP transport, VPN pass-through with IP Security encapsulating security payload (IPsec ESP), Point-to-Point Tunneling Protocol
• Voice Gateway: SIPv2 (RFC 3261, 3262, 3263, and 3264), SIP proxy redundancy: dynamic through use of DNS SRV A records,
Reregistration with primary SIP proxy server, SIP support in Network Address Translation (NAT) networks (including Serial Tunnel [STUN]), Highly secure (encrypted) calling using Secure RTP (SRTP), Codec name assignment, G.711 (A-law and μ-law), G.726 (32 kbps),
G.729 A, Dynamic payload, Adjustable audio frames per packet, Dual-tone multifrequency (DTMF): in-band and out-of-band (RFC 2833) (SIP information).
• Voice features: QoS (Ethernet port upstream bandwidth control), Independent configurable dial plans with interdigit timers and IP dialing (1 per port), Call progress tone generation, Jitter buffer: Adaptive, Frame loss concealment, Full-duplex audio, Echo cancellation (G.165 and G.168), Voice activity detection (VAD), Silence suppression, Comfort noise generation (CNG), Attenuation and gain adjustments, Flash hook timer, Message waiting indicator (MWI) tones, Visual messaging waiting indicator (VMWI) using frequency shift keying (FSK), Polarity control, Hook flash event signaling, Caller ID generation (name and number): Bellcore, DTMF, and European Telecommunications Standards Institute (ETSI), Streaming audio server: Up to 10 sessions, Music on hold, Call waiting, call waiting and caller ID, Caller ID with name and number, Caller ID blocking, Selective and anonymous call rejection, Call forwarding: No answer, busy, and all, Do not disturb, Call transfer, call return, and call back on busy, Three-way conference calling with local mixing, Per-call authentication and associated routing, Call blocking with toll restriction, Distinctive ringing: Calling and called number, Off-hook warning tone, Advanced inbound and outbound call routing, Hotline and warmline calling, Long silence (configurable time setting) silence threshold, Disconnect tone (for example, reorder tone), Configurable ring frequency, Ring validation time setting, Tip and ring voltage adjustment setting, Ring indication delay setting.
• Φαξ: Fax tone detection pass-through, Fax pass-through using G.711, Real-time fax over IP using T.38 fax relay (T.38 support is dependent on fax machine and network and transport resilience).
• Ασφάλεια: Password-protected system reset to factory default, Password-protected administrator and user access authority,
Provisioning, configuration, and authentication, HTTPS with factory-installed client certificate, HTTP digest: Encrypted authentication using MD5 (RFC 1321), Up to 256-bit Advanced Encryption Standard (AES) encryption, SIP Transport Layer Security (TLS).
• Διαχείρηση: Web browser administration and configuration using integral web server, Telephone keypad configuration with interactive voice prompts, Automated provisioning and upgrade using HTTPS, HTTP, and Trivial File Transfer Protocol (TFTP), TR-069,
Asynchronous notification of upgrade availability using Notify, Nonintrusive, in-service upgrades, Report generation and event logging,
Statistics in Bye message, Debug and syslog server records: Per-line configurable web browser, Ping and traceroute diagnostics, Configuration management: Backup and restore, Support for Bonjour.
• Θύρες: 1x WAN 100BASE-T RJ-45 Ethernet Port (IEEE 802.3), 1x LAN 100BASE-T RJ-45 Ethernet Port (IEEE 802.3), 2x RJ-11 FXS phone ports for analog circuit telephone device (tip and ring).
• Πλήκτρα: Reset.
• Subscriber line interface circuit (SLIC): Ring voltage: 40-90 Vpk configurable, Ring frequency: 20-25 Hz, Ring waveform: Trapezoidal, Maximum ringer load: 5 ringer equivalence numbers (RENs), On-hook voltage (tip and ring): -46 to -56V, Off-hook current: 18-25 mA, Terminating impedance: 600 ohm resistive or 270 ohm + 750 ohm, 150 nF complex impedance, Frequency response: 300-3400 Hz,
Return loss (600 ohm, 300-3400 Hz): up to 20 dB, Insertion loss (1 Vrms at 1 kHz): 3-4 dB, Total harmonic distortion (THD) (350 mV peak at 300 Hz): up to 3%, Idle channel noise: 72 dB (typical), Longitudinal balance: 55 dB (typical), Off-hook threshold (line seizure): Rdc < 1000 ohm, On-hook threshold (line release): Rdc >10000 ohm, Rdc DC supervisory range: Rdc > 450 ohm.
• Ενδείξεις LED: Phone 1, phone 2, Internet, and power.
• Πιστοποίηση: FCC (Part 15 Class B), CE, ICES-003, A-Tick certification, RoHS, and UL.
• Τροφοδοσία: DC input voltage: 5V DC at 2.0A maximum, Power consumption: 5W, Switching type (100-240V) automatic, Power adapter: 100-240V and 50-60 Hz (26-34 VA) AC input, with 1.8m cord.
• Διαστάσεις (W x H x D): 101 x 101 x 28 mm.
• Βάρος: 153g.
• Εγγύηση: 2 χρόνια. DOA 7 ημερών CISCO SPA122 ATA WITH ROUTER
