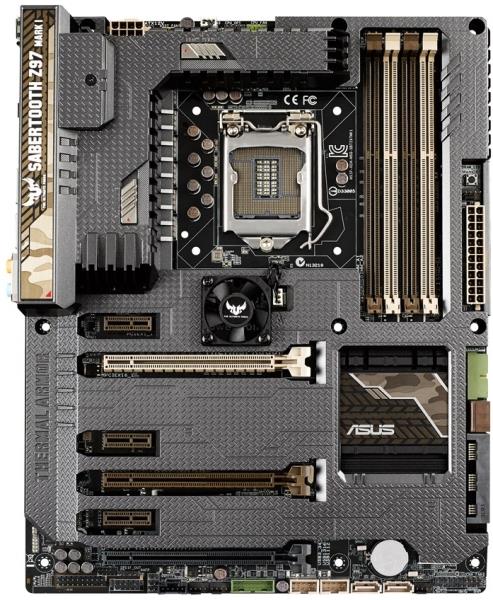

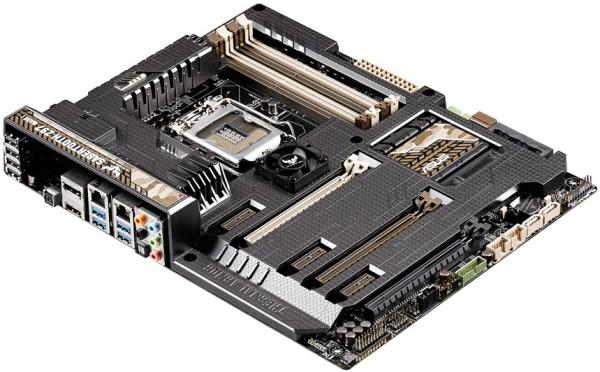

ΜΗΤΡΙΚΗ ASUS SABERTOOTH Z97 MARK 1 RETAIL

Κατηγορία: ΜΗΤΡΙΚΗ ΚΑΡΤΑ •
ASUS στην κατηγορία ΜΗΤΡΙΚΗ ΚΑΡΤΑ

Η Intel Z97 motherboard απο την ASUS έρχεται με ενισχυμένo backplate και ευέλικτο σύστημα ψύξης για non-stop σταθερότητα.

• Τοποθέτηση: ATX Form Factor ( 30.5 cm x 24.4 cm ).
• Υποδοχή CPU: Intel Socket 1150 .
• Υποστηριζόμενοι Επεξεργαστές: Intel Socket 1150 for the 5th/New 4th/4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors , Supports Intel 22 nm CPU, Supports Intel Turbo Boost Technology 2.0
• Chipset: Intel Z97.
• Υποστήριξη Καρτών Γραφικών: 2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8), 1 x PCIe 2.0 x16 (max at x4 mode, black).
• Θύρες Επέκτασεις: 3 x PCIe x1.
• Υποδοχές Μνήμης: 4 x DIMM, Max. 32GB, DDR3 1866/1600/1333 MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel Extreme Memory Profile (XMP)
• Υποστήριξη Δίσκων: Intel Z97 chipset : 1 x SATA Express port, blackcompatible with 2 x SATA 6.0 Gb/s ports, 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10, Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology. ASMedia PCIe SATA controller : 2 x SATA 6Gb/s port(s), beige.
• Θύρες Επικοινωνίας (Εξωτερικές): 1 x DisplayPort, 1 x HDMI, 2 x LAN (RJ45) port(s), 4 x USB 3.0 (blue) , 4 x USB 2.0 , 1 x Optical S/PDIF out, 5 x Audio jack(s), 1 x USB BIOS Flashback Button(s).
• Εσωτερικές Συνδέσεις: 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x SATA Express connector: , compatible with 2 x SATA 6.0 Gb/s ports, 1 x TPM header, 6 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 1 x CPU OPT Fan connector(s) (1 x 4 -pin), 4 x Chassis Fan connector(s) (4 x 4 -pin), 3 x Assistant Fan connector(s) (2 x 3 -pin, 1 x 4 -pin), 1 x S/PDIF out header(s), 1 x Thunderbolt header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s) , 1 x DRCT header(s), 1 x MemOK! button(s), 3 x Thermal sensor connector(s), 1 x Clear CMOS jumper(s).
• On-Board Συσκευές:
• Κάρτα γραφικών: Integrated Graphics Processor- Intel HD Graphics support, Multi-VGA output support : HDMI/DisplayPort ports.
• Κάρτα δικτύου: Intel I218V, 1 x Gigabit LAN Controller(s), Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY), Realtek 8111GR, 1 x Gigabit LAN Controller(s), Dual Gigabit LAN controllers- 802.3az Energy Efficient Ethernet (EEE) appliance.
• Κάρτα ήχου: Realtek ALC1150 8-Channel High Definition Audio CODEC.
• Εγγύηση: 5 χρόνια. DOA 7 ημερών
