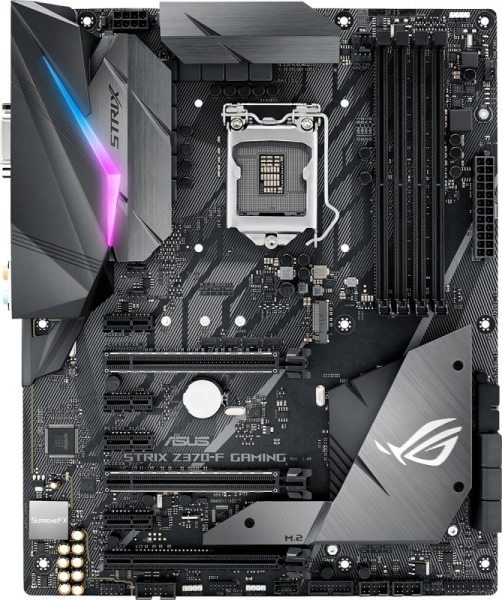

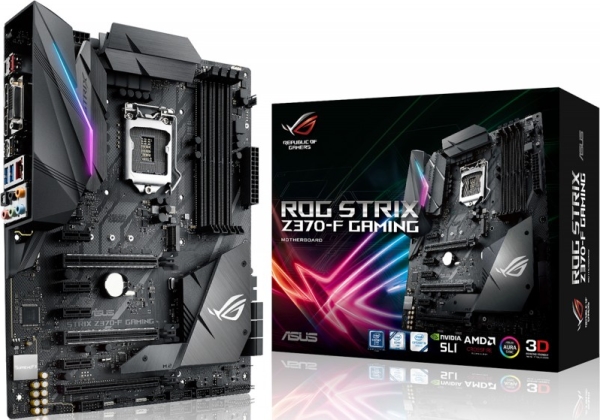

ΜΗΤΡΙΚΗ ASUS ROG STRIX Z370-F GAMING RETAIL

Κατηγορία: ΜΗΤΡΙΚΗ ΚΑΡΤΑ •
ASUS στην κατηγορία ΜΗΤΡΙΚΗ ΚΑΡΤΑ

Εμπλουτίστε πλήρως την εμπειρία των παιχνιδιών σας με επεξεργαστές 8ης γενιάς Intel Core. Η ROG STRIX Z370-F GAMING διαθέτει λειτουργίες 5-Way Optimization, AURA Sync και 3D. Δύο PCIe SafeSlots, εξασφαλίζουν την ασφαλή τοποθέτηση των γραφικών καρτών σας. Διαθέτει συμβατότητα Dual M.2 και Intel Optane Memory.

• Τύπος μητρικής: ATX (30.5 cm x 24.4 cm).
• Chipset: Intel Z370.
• Socket: LGA 1151 (300 Series).
• Τύπος επεξεργαστή: Intel LGA1151 socket συμβατό με 8th γενιάς Intel Core Processors, Supports Intel 14 nm CPU, Supports Intel Turbo Boost Technology 2.0 .
• Μνήμη: 4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory.
• Θύρες επέκτασης: 2 x PCIe 3.0 x16 (x16 or dual x8) , 1 x PCIe 3.0 x16 (x4 mode) , 4 x PCIe 3.0/2.0 x1.
• Υποστήριξη σκληρών δίσκων: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode), 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10, Intel Optane Memory Ready.
• USB Ports: 6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board), 6 x USB 2.0 port(s) , 2 x USB 3.1 port(s) (Type-A + USB Type-C, Support 3A power output).
• Πίσω I/O θύρες: 1 x DVI-D, 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 2 Type-A + USB Type-C, 2 x USB 3.1 Gen 1 (blue), 2 x USB 2.0, 1 x Optical S/PDIF out, 5 x Audio jack(s).
• Εσωτερικές I/O συνδέσεις: 1 x AAFP connector, 2 x RGB Header(s), 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) , 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only), 6 x SATA 6Gb/s connector(s), 1 x M.2_FAN connector, 1 x CPU Fan connector(s) , 1 x CPU OPT Fan connector(s) , 2 x Chassis Fan connector(s) , 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x System panel(s) (Chassis intrusion header is inbuilt), 1 x CPU OV, 1 x Clear CMOS jumper(s), 1 x 5-pin EXT_FAN(Extension Fan) connector, 1 x ROG extension (ROG_EXT) header(s), 1 x 14-1 pin TPM connector, 1 x COM port header, 1 x T_Sensor Connector, 1 x AIO PUMP Header, 3 x 3D Mount screw port(s).
• On-Board Συσκευές:Ενσωματωμένη κάρτα δικτύου: Intel I219V, Anti-surge LANGuard, ROG GameFirst Technology.
Γραφικά: Μέσω επεξεργαστή. Intel HD Graphics support, Multi-VGA output support : HDMI/DVI-D/DisplayPort 1.2 ports, Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz, Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz, Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz, Maximum shared memory of 1024 MB, Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider, Supports up to 3 displays simultaneously.
Ενσωματωμένη κάρτα ήχου: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A.

• Συμβατό λειτουργικό: Windows 10 64-bit.
• Εγγύηση: 3 Χρόνια. DOA 7 ημερών
