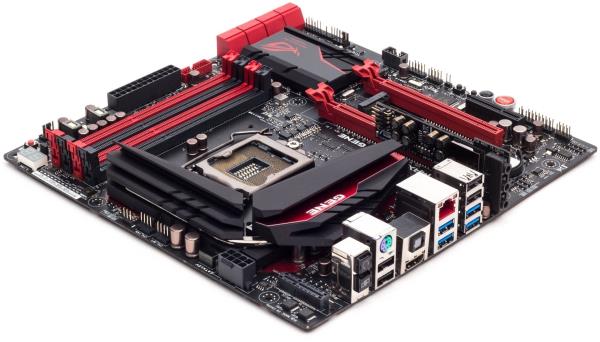

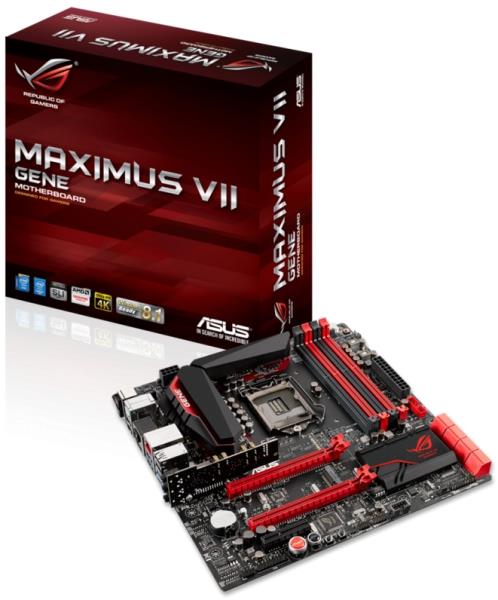

ΜΗΤΡΙΚΗ ASUS MAXIMUS VII GENE RETAIL

Κατηγορία: ΜΗΤΡΙΚΗ ΚΑΡΤΑ •
ASUS στην κατηγορία ΜΗΤΡΙΚΗ ΚΑΡΤΑ

Η πιο ισχυρη Z97 mATX μητρική απο την θρυλική ASUS με αποκλειστικά ROG χαρακτηριστικά.

• Τοποθέτηση: mATX Form Factor ( 24.4 cm x 24.4 cm ).
• Υποδοχή CPU: Intel Socket 1150 .
• Υποστηριζόμενοι Επεξεργαστές: Intel Socket 1150 for the 5th/New 4th/4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors , Supports Intel 22 nm CPU, Supports Intel Turbo Boost Technology 2.0
• Chipset: Intel Z97.
• Θύρες Επέκτασεις: 2 x PCIe 3.0/2.0 x16 (x16 or dual x8), 1 x PCIe 2.0 x4, 1 x mini-PCIe 2.0 x1.
• Υποδοχές Μνήμης: 4 x DIMM, Max. 32GB, DDR3 3300(O.C.)/3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel Extreme Memory Profile (XMP).
• Υποστήριξη Δίσκων: Intel Z97 chipset : 6 x SATA 6Gb/s port(s), red, Support Raid 0, 1, 5, 10, Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology, 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode), ASMedia ASM1061 controller : 2 x SATA 6Gb/s port(s), red.
• Θύρες Επικοινωνίας (Εξωτερικές): 1 x PS/2 keyboard/mouse combo port(s), 1 x DVI-D, 1 x D-Sub, 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 4 x USB 3.0 (blue), 4 x USB 2.0 (one port can be switched to USB BIOS Flashback), 1 x Optical S/PDIF out, 3 x Audio jack(s), 2 x Wi-Fi antenna port(s).
• Εσωτερικές Συνδέσεις: 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin), 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s), 1 x M.2 Socket 3 for M Key, type 2260/2280 devices, 1 x TPM header, 4 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 2 x Chassis Fan connector(s) (2 x 4 -pin), 1 x S/PDIF out header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s) (Q-Connector), 1 x MemOK! button(s), 1 x Clear CMOS jumper(s).
• On-Board Συσκευές:
• Κάρτα γραφικών: Integrated Graphics Processor- Intel HD Graphics support - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz.
• Κάρτα δικτύου: Intel I218V, 1 x Gigabit LAN Controller(s), featuring GAMEFIRST III, Intel LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY), Anti-surge LANGuard.
• Κάρτα ήχου: ROG SupremeFX Impact II 8-Channel High Definition Audio CODEC.
• Εγγύηση: 3 χρόνια. DOA 7 ημερών
