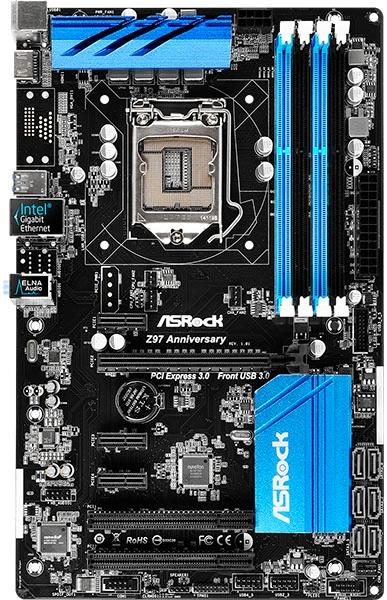

ΜΗΤΡΙΚΗ ASROCK Z97 ANNIVERSARY RETAIL

Κατηγορία: ΜΗΤΡΙΚΗ ΚΑΡΤΑ •
ASROCK στην κατηγορία ΜΗΤΡΙΚΗ ΚΑΡΤΑ

Η Asrock είναι μια από τις ταχύτερα αναπτυσσόμενες εταιρείες στην κατασκευή motherboard. Από την ίδρυση της η Asrock έχει καταφέρει σε σύντομο χρονικό διάστημα τη δημιουργία μητρικών καρτών που ενσωματώνουν όλες τις νέες τεχνολογίες.

• Τοποθέτηση: ATX Form Factor.
• Υποδοχή CPU: Socket 1150.
• Υποστηριζόμενοι Επεξεργαστέςς: Supports 5th Generation Intel Core i7/i5/i3/Pentium/Celeron Processors (Socket 1150). Supports New 4th and 4th Generation Intel Xeon/Core i7/i5/i3/Pentium/Celeron Processors (Socket 1150). Digi Power design. 4 Power Phase design. Supports Intel Turbo Boost 2.0 Technology. Supports Intel K-Series unlocked CPUs. Supports ASRock BCLK Full-range Overclocking.
• Chipset: Intel Z97.
• Υποδοχές Μνήμης: Dual Channel DDR3 Memory Technology. 4 x DDR3 DIMM Slots. Supports DDR3 3100+(OC)/2933(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory. Max. capacity of system memory: 32GB Supports Intel Extreme Memory Profile (XMP) 1.3 / 1.2
• Υποδοχές Επέκτασης: 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode). 3 x PCI Express 2.0 x1 Slots. 2 x PCI Slots.
• Υποστήριξη Δίσκων: 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 13 and Intel Smart Response Technology), NCQ, AHCI and Hot Plug.
• Θύρες Επικοινωνίας (Εξωτερικές): 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)), 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone
• Εσωτερικές Συνδέσεις: 1 x COM Port Header, 1 x TPM Header, 1 x Power LED Header, 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin), 2 x Chassis Fan Connectors (2 x 4-pin), 1 x Power Fan Connector (3-pin), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)), 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)).
• On-Board:
-Κάρτα Γραφικών: Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 4400/4600. Pixel Shader 5.0, DirectX 11.1. Max. shared memory 1792MB. Supports HDMI with max. resolution up to 1920x1200 60Hz. Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required). Supports HDCP with HDMI Port. Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port
-Ήχος: 7.1 CH HD Audio (Realtek ALC887 Audio Codec). Supports Surge Protection (ASRock Full Spike Protection). ELNA Audio Caps
-LAN: Gigabit LAN 10/100/1000 Mb/s. Giga PHY Intel I218V. Supports Intel Remote Wake Technology. Supports Wake-On-LAN. Supports Lightning/ESD Protection (ASRock Full Spike Protection). Supports Energy Efficient Ethernet 802.3az. Supports PXE

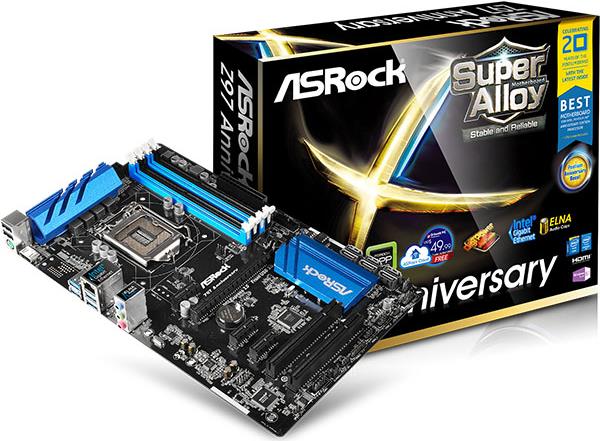

• Συσκευασία: Retail.
• Εγγύηση: 2 χρόνια. DOA 7 ημερών
