ΜΗΤΡΙΚΗ ASROCK X570 STEEL LEGEND RETAIL

Κατηγορία: ΜΗΤΡΙΚΗ ΚΑΡΤΑ •
ASROCK στην κατηγορία ΜΗΤΡΙΚΗ ΚΑΡΤΑ

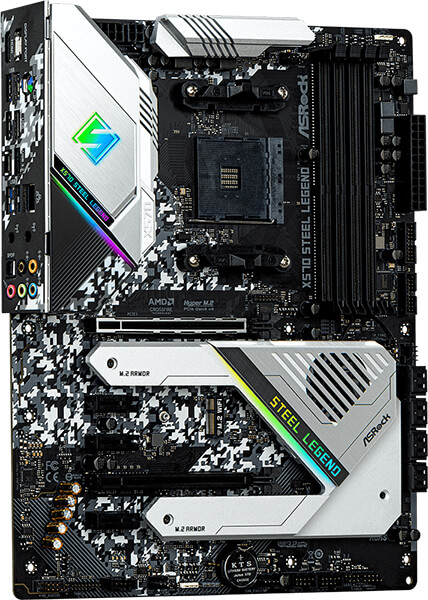

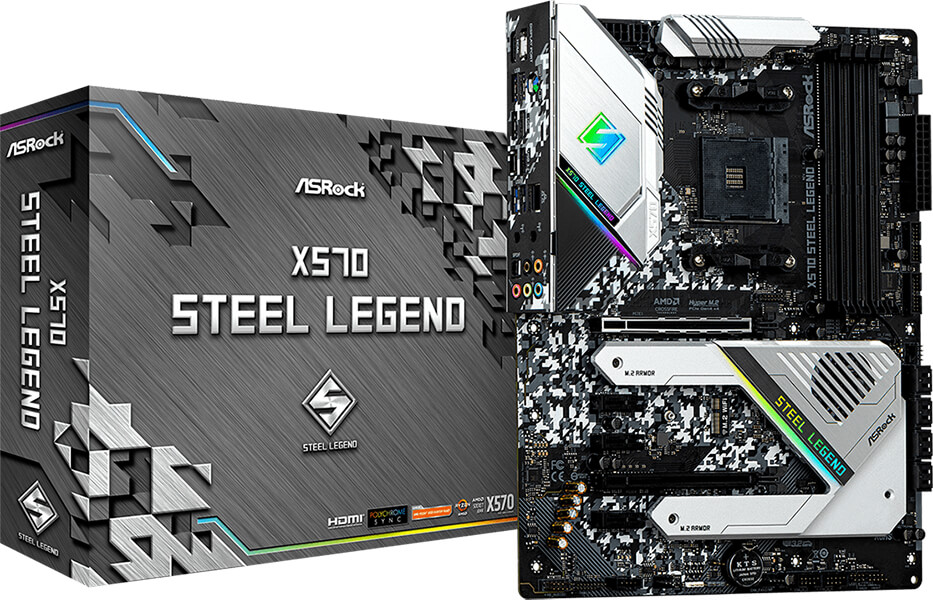

ASROCK X570 STEEL LEGEND motherboard.

• Τύπος: ATX Form Factor (30.5 cm x 24.4 cm).
• Επεξεργαστές: Supports AMD AM4 socket Ryzen 2000 and 3000 series processors.
• Chipset: AMD X570.
• Μνήμες: Dual Channel DDR4 Memory Technology, 4 x DDR4 DIMM Slots, AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory, Max. capacity of system memory: 128GB.
• Υποστήριξη δίσκων: 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso), 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s).
• Θύρες επέκτασης: AMD Ryzen series CPUs (Matisse): 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4)), AMD Ryzen series CPUs (Pinnacle Ridge): 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4)), AMD Ryzen series CPUs (Picasso): 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE4)) / 3 x PCI Express 4.0 x1 Slots / 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module / 15μ Gold Contact in VGA PCIe Slot (PCIE1).
• Εσωτερικές συνδέσεις: 1 x Power LED and Speaker Header, 1 x AMD Fan LED Header, 1 x RGB LED Header, 1 x Addressable LED Header, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x 4 pin 12V Power Connector, 1 x Front Panel Audio Connector (15μ Gold Audio Connector), 1 x AMD LED Fan USB Header, 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC Card R2.0 only), 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection), 1 x SPI TPM Header.
• Εξωτερικές συνδέσεις: 2 x Antenna Ports (on I/O Panel Shield), 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 1 x DisplayPort 1.2, 1 x Optical SPDIF Out Port, 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), 6 x USB 3.2 Gen1 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks).
• Γραφικά: Integrated Graphics.
• Ενσωματωμένη κάρτα ήχου: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec).
• Ενσωματωμένη κάρτα δικτύου: Gigabit LAN 10/100/1000 Mb/s, GigaLAN Intel I211AT.
• Λειτουργικό σύστημα: Microsoft Windows 10 64-bit.
• Εγγύηση: 3 χρόνια. DOA 7 ημερών
