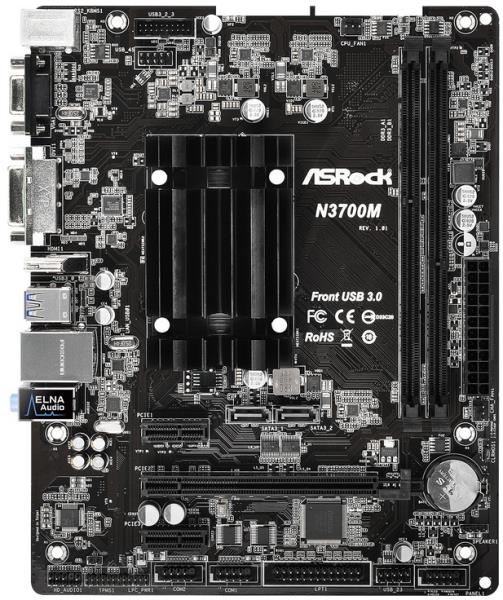

ΜΗΤΡΙΚΗ ASROCK N3700M RETAIL

Κατηγορία: ΜΗΤΡΙΚΗ ΚΑΡΤΑ •
ASROCK στην κατηγορία ΜΗΤΡΙΚΗ ΚΑΡΤΑ

Αυτή η μητρική διαθέτει επεξεργαστή Intel Quad-Core Pentium N3700, υποστηρίζει 2 Dimm 1600 DDR3 Ram, και έχει ενσωματωμένη κάρτα γραφικών Intel 8ης γενιάς (Gen 8).

• Τοποθέτηση: Mini-ITX.
• CPU: Intel Quad-Core Pentium Processor N3700 (έως και 2.4 GHz).
• Μνήμη: Dual Channel DDR3/DDR3L Memory Technology, 2 x DDR3/DDR3L DIMM Slots, Supports DDR3/DDR3L 1600/1066 non-ECC, un-buffered memory, Max. capacity of system memory: 16GB.
• BIOS: 64Mb AMI UEFI Legal BIOS with GUI support.
• Γραφκά: Intel 8th generation (Gen 8) graphics: up to 16 EUs inside, DirectX 11.1, Pixel Shader 5.0, Supports Triple Monitor, Three graphics output options: DVI-D, HDMI and DisplayPort 1.1a, Supports HDMI with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz, Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz, Supports DisplayPort 1.1a with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz.
• Ήχος: 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec).
• LAN: Gigabit LAN 10/100/1000 Mb/s, Supports Wake-On-LAN.
• Θύρες PCI: 1 x PCI Express 2.0 x16 Slot (PCIE2 @ x1 mode), 2 x PCI Express 2.0 x1 Slots.
• Storage: 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug.
• Εσωτερικές συνδέσεις: 1 x Print Port Header, 2 x COM Port Header, 1 x TPM Header, 1 x CPU Fan Connector (3-pin), 1 x Chassis Fan Connector (3-pin), 1 x 24 pin ATX Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Header (Supports 4 USB 2.0 ports), 1 x USB 3.0 Header (Supports 2 USB 3.0 ports).
• Θύρες εισόδου/εξόδου: 1 x PS/2 Mouse, 1 x PS/2 Keyboard Port, 1 x D-Sub Port, 1 x DVI-D Port, 1 x HDMI Port, x DisplayPort 1.1a, 1 x Optical SPDIF Out Port, 2 x USB 2.0 Ports, 2 x USB 3.0 Ports, 1 x RJ-45 LAN Port with LED, HD Audio Jacks: Line in / Front Speaker / Microphone.
• Πιστοποιήσεις: FCC, CE, WHQL.
• Εγγύηση: 2 Χρόνια. DOA 7 ημερών
