ÅðåîåñãáóôÝò: Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package.
Chipset: Intel H470 Express.
ÌíÞìåò: Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules, Intel® Core™ i5/i3/Pentium®/Celeron®processors: Support for DDR4 2666/2400/2133 MHz memory modules, 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, Dual channel memory architecture.
ÕðïóôÞñéîç äßóêùí: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support), 4 x SATA 6Gb/s connectors.
Èýñåò åðÝêôáóçò: 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 2 x PCI Express x1 slots.
ÅóùôåñéêÝò óõíäÝóåéò: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x RGB LED strip headers, 4 x SATA 6Gb/s connectors, 1 x M.2 Socket 3 connector, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 2 x serial port headers, 1 x parallel port header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button.

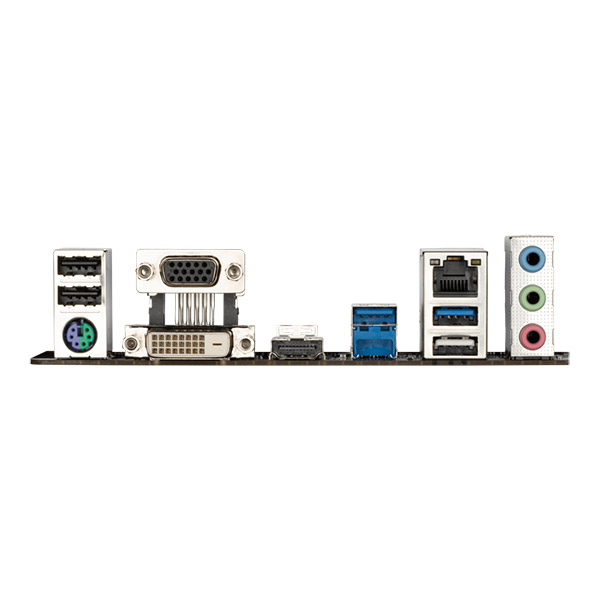

ÅîùôåñéêÝò óõíäÝóåéò: 1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x DVI-D port, 1 x HDMI port, 3 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks.
ÃñáöéêÜ: Integrated Graphics Processor-Intel HD Graphics.
ÅíóùìáôùìÝíç êÜñôá Þ÷ïõ: Realtek codec.
ÅíóùìáôùìÝíç êÜñôá äéêôýïõ: Intel® GbE LAN chip (1000 Mbit/100 Mbit).
Óõìâáôü ëåéôïõñãéêü óýóôçìá: Microsoft Windows 10 64-bit, Microsoft Windows 7 64-bit.
• Ôýðïò: Micro ATX (24.4cm x 24.4cm). • ÅðåîåñãáóôÝò: Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package. • Chipset: Intel H470 Express. • ÌíÞìåò: Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules, Intel® Core™ i5/i3/Pentium®/Celeron®processors: Support for DDR4 2666/2400/2133 MHz memory modules, 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, Dual channel memory architecture. • ÕðïóôÞñéîç äßóêùí: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support), 4 x SATA 6Gb/s connectors. • Èýñåò åðÝêôáóçò: 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 2 x PCI Express x1 slots. • ÅóùôåñéêÝò óõíäÝóåéò: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x RGB LED strip headers, 4 x SATA 6Gb/s connectors, 1 x M.2 Socket 3 connector, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 2 x serial port headers, 1 x parallel port header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button. • ÅîùôåñéêÝò óõíäÝóåéò: 1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x DVI-D port, 1 x HDMI port, 3 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks. • ÃñáöéêÜ: Integrated Graphics Processor-Intel HD Graphics. • ÅíóùìáôùìÝíç êÜñôá Þ÷ïõ: Realtek codec. • ÅíóùìáôùìÝíç êÜñôá äéêôýïõ: Intel® GbE LAN chip (1000 Mbit/100 Mbit). • Óõìâáôü ëåéôïõñãéêü óýóôçìá: Microsoft Windows 10 64-bit, Microsoft Windows 7 64-bit. • Åããýçóç: 3 ÷ñüíéá. DOA 7 çìåñþí
