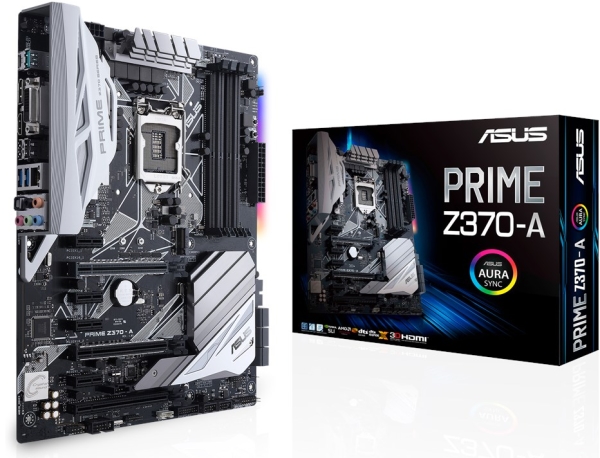

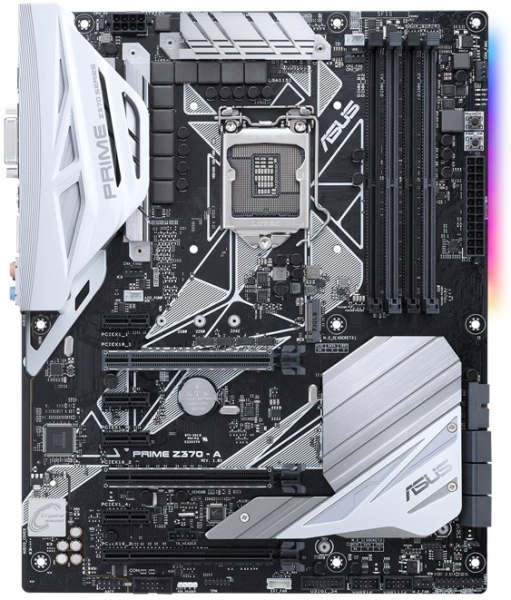

ΜΗΤΡΙΚΗ ASUS PRIME Z370-A RETAIL

Κατηγορία: ΜΗΤΡΙΚΗ ΚΑΡΤΑ •
ASUS στην κατηγορία ΜΗΤΡΙΚΗ ΚΑΡΤΑ

Σχεδιασμένη για επεξεργαστές Intel Core 8ης γενιάς, η Prime Z370-A προσφέρει μέγιστη απόδοση με προσαρμόσιμο στυλ. Διαθέτει λειτουργίες 5-Way Optimization, AURA Sync , ενώ τα Dual M.2 και USB 3.1 Gen2 παρέχουν μέγιστες ταχύτητες μεταφοράς.

• Τύπος μητρικής: ATX (30.5 cm x 24.4 cm).
• Chipset: Intel Z370.
• Socket: LGA 1151 (300 Series).
• Τύπος επεξεργαστή: Intel LGA1151 socket συμβατό με 8/9th γενιάς Intel Core Processors, Supports Intel 14 nm CPU, Supports Intel Turbo Boost Technology 2.0 (Κάντε κλικ εδώ για να δείτε τους συμβατούς επεξεργαστές από το site του κατασκευαστή).
• Μνήμη: 4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory.
• Θύρες επέκτασης: 2 x PCIe 3.0 x16 (x16 or dual x8) , 1 x PCIe 3.0 x16 (x4 mode) , 4 x PCIe 3.0/2.0 x1.
• Υποστήριξη σκληρών δίσκων: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (PCIE mode only), 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10, Intel Optane Memory Ready.
• USB Ports: 1 x USB 3.1 Gen 2 port(s) (1 at back panel, teal blue, Type-A, Support 3A power output), 1 x USB 3.1 Gen 2 port(s) (1 at back panel, , USB Type-C, Support 3A power output), 6 x USB 3.1 Gen 1 port(s) (2 at back panel, , 4 at mid-board), 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board).
• Πίσω I/O θύρες: 1 x DVI-D, 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 1 x USB 3.1 Gen 2 Type-A, 1 x USB 3.1 Gen 2 USB Type-CTM, 2 x USB 3.1 Gen 1, 2 x USB 2.0, 1 x Optical S/PDIF out, 5 x Audio jack(s).
• Εσωτερικές I/O συνδέσεις: 1 x Aura RGB Strip Header, 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only), 6 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 1 x CPU OPT Fan connector(s) (1 x 4 -pin), 2 x Chassis Fan connector(s) (2 x 4 -pin), 1 x Thunderbolt header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x EZ XMP switch, 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt), 1 x 5-pin EXT_FAN(Extension Fan) connector, 1 x MemOK! button(s), 1 x CPU OV, 1 x Power-on button(s), 1 x Clear CMOS jumper(s), 1 x 14-1 pin TPM connector, 1 x COM port header, 1 x T_Sensor Connector, 1 x AIO PUMP Header, 2 x 3D Mount screw port(s), 1 x M.2 Fan Header.
• On-Board Συσκευές:Ενσωματωμένη κάρτα δικτύου: Intel I219V, 1 x Gigabit LAN Controller(s), ASUS Turbo LAN Utility, ASUS LAN Guard.
Γραφικά: Μέσω επεξεργαστή. Intel HD Graphics support, Multi-VGA output support : HDMI/DVI-D/DisplayPort 1.2 ports, Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz, Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz, Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz , Maximum shared memory of 1024 MB.
Ενσωματωμένη κάρτα ήχου: Realtek S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3.

• Συμβατό λειτουργικό: Windows 10 64-bit.
• Εγγύηση: 3 Χρόνια. DOA 7 ημερών
